You can build a self-balancing bot, a line-follower, or even a gesture-controlled robotic arm using just a $4 Raspberry Pi Pico and a few hours of coding. When you ask What are some beginner-friendly robotic projects that can be built using the Raspberry Pi Pico and coding?, the answer isn’t just a list of ideas; it’s a gateway to a world where your code literally moves the physical world.

We recently watched a high school student in our workshop turn a simple Pico and two motors into a maze-solving rover in under an hour. It wasn’t magic; it was just the right hardware paired with the right logic. The Pico’s dual-core processor handles the heavy lifting while you focus on the fun part: making things move.

Did you know that over 2 million Pico boards have been sold since 2021, largely driven by the maker community’s hunger for accessible robotics? This tiny chip has democratized engineering, proving that you don’t need a PhD to build a robot that thinks.

Key Takeaways

  • Start Simple: The line-following robot and obstacle-avoiding rover are the perfect entry points for mastering sensor logic and motor control.
  • Code with Ease: Use MicroPython or CircuitPython to write readable, interactive code that lets you see results instantly without complex compilation.
  • Expand Your Horizons: Once comfortable, tackle advanced projects like self-balancing bots or TinyML-enabled robots that can recognize gestures and sounds.
  • Affordable Innovation: You can build a fully functional robot for under $30, making it the most cost-effective way to learn robotics today.

Table of Contents


⚡️ Quick Tips and Facts

Before we strap on our soldering irons and start wiring up motors, let’s hit the pause button for a quick reality check. You might be thinking, “Robots? That’s for PhDs in engineering labs, right?” Wrong. The Raspberry Pi Pico has democratized robotics in a way that feels almost like magic.

Here are the non-negotiable facts you need to know before diving in:

  • The Powerhouse: The Pico runs on the RP2040 chip, designed by Raspberry Pi themselves. It’s a dual-core ARM Cortex-M0+ processor that punches way above its weight class.
  • The Language: While you can use C/C++, we at Robotic Coding™ swear by MicroPython and CircuitPython for beginners. Why? Because you can write code that looks like English and see results instantly.
  • The Cost: You can build a fully functional robot for less than the price of a fancy coffee. The board itself is around $4-$6, and the rest depends on how fancy you want your wheels to be.
  • The “No-OS” Advantage: Unlike the full-sized Raspberry Pi (which runs Linux), the Pico is a microcontroller. It boots in milliseconds and does exactly what you tell it to, with zero background noise. Perfect for real-time motor control.
  • WiFi is Optional (but Cool): The standard Pico is great, but the Pico W adds WiFi and Bluetooth, turning your robot into an IoT device that you can control from your phone.

Pro Tip: If you’ve never touched a microcontroller before, don’t panic. We’ve all been there. Start with the basics, and you’ll be building autonomous rovers before you know it. For a deeper dive into the board itself, check out our guide on the Raspberry Pi Pico.


📜 From Micro:bit to Pico: The Evolution of Beginner Robotics


Video: Course Lesson 8 of 10: Follow Hand project with Raspberry Pi Pico 4WD Smart Car Kit.








Remember the days when “robotics” meant buying a $20 kit that came with a 50-page manual written in a language that sounded like alien code? We do. The landscape has shifted dramatically.

The journey began with boards like the BBC Micro:bit, which was fantastic for school kids but often hit a ceiling when you wanted to do something complex like control a 6-axis arm or stream video. Then came the Arduino, the king of the hill for a decade. It was robust, had a massive community, but the C++ syntax could be a bit intimidating for absolute novices.

Enter the Raspberry Pi Pico. Launched in 2021, it wasn’t just another board; it was a paradigm shift. It combined the ease of use of the Micro:bit with the raw power and flexibility of the Arduino, all wrapped in a package that cost a fraction of the price.

Why the Pico changed the game:

  • Dual-Core Processing: One core can handle the heavy lifting (like reading sensors), while the other manages the user interface or motor control. No more lagy robots!
  • PIO (Programmable I/O): This is the secret sauce. It allows you to offload timing-critical tasks from the CPU, meaning you can control servos and read sensors with microsecond precision.
  • The Ecosystem: Within months of launch, libraries for everything from GPS to machine learning popped up.

Curiosity Gap: But here’s the thing—just because the hardware is powerful doesn’t mean the software is easy. How do you actually get a robot to move without it spinning in circles? We’ll reveal the magic formula for motor control later in this article.


🛠️ Essential Hardware and Software for Your First Pico Robot


Video: Raspberry Pi Pico – 10 Cool Project Ideas!








You can’t build a robot with just code. You need the physical guts. Let’s break down the shopping list you’ll need to get started. We’ve tested dozens of combinations, and this is the “sweet spot” for beginners.

The Core Components

Component Why You Need It Recommended Brands
Raspberry Pi Pico / Pico W The brain. Handles logic, sensor input, and motor output. Raspberry Pi, Adafruit, SparkFun
Motor Driver The Pico can’t power motors directly; it needs a driver to amplify the signal. L298N, TB612FNG, Polu
DC Motors The muscles. Usually 6V or 12V geared motors for wheels. Polu, DFRobot, Adafruit
Chassis The skeleton. Holds everything together. 3D Printed, Acrylic, or pre-made kits
Battery Pack The heart. Li-Po or AA battery holders (4x AA is a great start). Adafruit, SparkFun
Sensors The eyes and ears. Ultrasonic, IR, or IMU. HC-SR04, MPU6050, Grove sensors
Jumper Wires The nervous system. Connects everything. Generic (Male-to-Male, Male-to-Female)

The Software Stack

  • IDE (Integrated Development Environment): We recommend Thony IDE. It’s lightweight, comes with MicroPython pre-installed, and makes debugging a breeze.
  • Language: MicroPython. It’s Python, but stripped down for microcontrollers.
  • Libraries: You’ll need libraries like machine (built-in) and external ones for specific sensors.

Where to get the hardware?
If you want to avoid the headache of sourcing individual components, we highly recommend starting with a kit.

👉 CHECK PRICE on:


🤖 10 Beginner-Friendly Robotic Projects to Build with Raspberry Pi Pico


Video: Pico Course for Beginners | Coding, Electronics and Microcontrollers.








Ready to get your hands dirty? Here are 10 projects that range from “I can do this in an afternoon” to “I need a weekend and a lot of coffee.” We’ve ranked them by difficulty, but trust us, they’re all achievable.

1. The Self-Balancing Two-Wheled Bot

This is the “Hello World” of advanced robotics. It looks like a Segway on steroids.

  • The Challenge: Keeping a robot upright on two wheels requires reading an IMU (Inertial Measurement Unit) 10 times a second and adjusting motor speed instantly.
  • The Magic: The Pico’s dual-core architecture is perfect for this. One core runs the PID control loop, the other handles sensor data.
  • Why Build It? It teaches you the fundamentals of feedback loops and control theory.

2. Line-Following Robot with IR Sensors

The classic. A robot that follows a black line on a white floor.

  • The Setup: Use 3-5 IR sensors (Infrared Reflectance) at the bottom of the chassis.
  • The Logic: If the left sensor sees black, turn left. If the right sees black, turn right. Simple, right?
  • The Twist: Add a PID controller to make it smooth, not jerky.

3. Obstacle-Avoiding Rover with Ultrasonic Sensors

Think of this as the robot version of a self-driving car.

  • The Sensor: HC-SR04 Ultrasonic sensor. It bounces sound waves off objects to measure distance.
  • The Code: “If distance < 20cm, stop, turn 90 degrees, and move forward.”
  • Real-World Use: Great for understanding sensor fusion and decision trees.

4. Robotic Arm with Servo Control

Build a 3 or 4-degree-of-fredom arm that can pick up objects.

  • The Hardware: High-torque servos (like MG96R) and a 3D-printed or laser-cut frame.
  • The Control: You can control it with a joystick or even a smartphone app via WiFi (if using Pico W).
  • Fun Fact: This is the same principle used industrial arms, just on a smaller scale.

5. Weather-Tracking Station Robot

A mobile weather station that roams your garden.

  • Sensors: DHT2 (Temp/Humidity), BMP280 (Pressure), and a light sensor.
  • The Output: Display data on a small OLED screen or send it to a cloud dashboard.
  • Why It’s Cool: It combines IoT with robotics. Your robot tells you if it’s going to rain!

6. Voice-Controled Home Automation Hub

Yes, you can make a robot that listens to you.

  • The Tech: Use a microphone module (like the INMP41) and a simple keyword spotting library.
  • The Action: Say “Go to the kitchen,” and the robot drives there.
  • Note: For full speech recognition, you might need to offload processing to a phone, but the Pico can handle simple commands.

7. Gesture-Controled Robotic Hand

Control a robotic hand with your own hand using flex sensors.

  • The Setup: Wear a glove with flex sensors. When you bend your finger, the robot mimics the movement.
  • The Connection: Use Bluetooth (Pico W) to send data wirelessly.
  • The Wow Factor: It feels like you have a superpower.

8. Autonomous Maze-Solving Robot

Program a robot to solve a maze without human intervention.

  • The Algorithm: The “Left-Hand Rule” is the easiest to start with. Always turn left if possible; if not, go straight; if not, turn right.
  • The Challenge: Handling dead ends and optimizing the path.
  • The Reward: Watching your robot figure out a maze it has never seen before is incredibly satisfying.

9. Solar-Powered Garden Rover

A robot that charges itself while it works.

  • The Power: A small solar panel and a Li-Po battery with a charging circuit (TP4056).
  • The Logic: If battery is low, find the sun and park. If battery is full, go explore.
  • Sustainability: It’s a great way to learn about energy management.

10. Interactive Pet Robot with Motion Sensors

A robot that acts like a pet. It follows you, barks (beps), and reacts touch.

  • Sensors: PIR motion sensor (to detect you), touch sensors, and a speaker.
  • The Personality: Program it to have “moods” based on battery level or time of day.
  • The Result: A robot that feels alive.

🧠 Demystifying MicroPython and CircuitPython for Robotics


Video: 3 Easy @raspberrypi Pico Projects that ANYONE can tackle!








Okay, let’s talk code. If you’ve ever looked at C++ and felt your eyes glaze over, MicroPython is your new best friend.

What is MicroPython?
It’s a lean and efficient implementation of the Python 3 programming language that includes a small subset of the standard library and is optimized to run on microcontrollers.

Why we love it for robotics:

  1. Readability: motor.forward() is much easier to read than motor_control(MOTOR_A, 25, 0).
  2. Interactivity: You can type code directly into the REPL (Read-Eval-Print Loop) and see the robot move instantly. No compiling, no flashing.
  3. Libraries: The machine module gives you direct access to GPIO, PWM, and I2C.

CircuitPython vs. MicroPython:
Both are very similar. CircuitPython (by Adafruit) is often considered more “beginer-friendly” because it automatically mounts as a USB drive when you plug it in, allowing you to drag and drop code files. MicroPython (by Raspberry Pi) is slightly more performant in some edge cases.

The Verdict: For robotics, we recommend CircuitPython for absolute beginners due to the ease of file management, but MicroPython is equally capable once you get the hang of it.

Code Snippet: Moving a Motor
Here’s what controlling a motor looks like in MicroPython:

from machine import Pin, PWM
import time

# Define pins
motor_pin = Pin(15, Pin.OUT)
pwm_motor = PWM(motor_pin)

# Set frequency (usually 10Hz for motors)
pwm_motor.freq(10)

# Move forward at 50% speed
pwm_motor.duty_u16(32768)

time.sleep(2)

# Stop
pwm_motor.duty_u16(0)

See? No complex headers, no void setup(). Just pure logic.


🔌 Integrating Sensors: From Ultrasonic to IMUs


Video: You must try these 3 beginner friendly projects using Raspberry pi pico | Raspberry pi pico projects.








A robot without sensors is just a remote-controlled car. To make it autonomous, you need to give it senses.

The Ultrasonic Sensor (HC-SR04)

  • How it works: Sends a sound pulse and measures the time it takes to bounce back.
  • The Math: Distance = (Speed of Sound Ă— Time) / 2.
  • Pico Connection: Connect Trigger to a GPIO pin, Echo to another. Use a voltage divider for the Echo pin if it’s 5V (the Pico is 3.3V logic!).

The IMU (MPU6050)

  • What it does: Measures acceleration and rotation (gyroscope).
  • Why it matters: Essential for self-balancing robots and detecting orientation.
  • Connection: Uses I2C protocol. Connect SDA to GPIO 4 and SCL to GPIO 5 (standard Pico I2C pins).

The Infrared (IR) Array

  • Use Case: Line following and obstacle detection.
  • Tip: IR sensors can be tricky with sunlight. Always test your robot in the lighting conditions where it will operate.

Pro Tip: Don’t try to wire everything manually if you can avoid it. Use Grove connectors or breakout boards. They make swapping sensors a breeze.


⚙️ Power Management and Motor Drivers Explained


Video: 10 Robotics Projects Kids Can Really Make!








This is where most beginners fail. They connect a motor directly to the Pico, and boom—the Pico resets or burns out.

The Problem:
The Pico’s GPIO pins can only supply about 12mA of current. A small DC motor can draw 20mA or more. The Pico simply cannot handle that load.

The Solution: Motor Drivers
A motor driver acts as a bridge. It takes the low-power signal from the Pico and uses a separate power source (like a battery pack) to drive the motor.

Common Motor Drivers:

  • L298N: The classic. Cheap, but runs hot and is inefficient. Good for learning, not for long runs.
  • TB612FNG: More efficient, runs cooler, and supports higher current. Our recommendation.
  • Polu Dual Motor Driver: Compact and reliable, perfect for small rovers.

Power Supply Tips:

  • Don’t share power: Keep the logic power (Pico) and motor power (motors) separate, but connect their GND (ground) pins together. This is called a “common ground.”
  • Battery choice: Li-Po batteries are lightweight and powerful but require careful charging. AA batteries are safer and easier for beginners.

🐛 Troubleshooting Common Pico Robotics Pitfalls


Video: Raspberry pi robot project | How to build your first robot with Raspberry Pi?








Even the best engineers have robots that refuse to move. Here are the top 5 reasons your Pico robot might be acting up:

  1. The “Common Ground” Mistake: If your motor driver and Pico don’t share a ground connection, nothing will work. Check your GND wires!
  2. Voltage Mismatch: Are you trying to run a 12V motor on a 3.3V signal? Or powering the Pico with 9V directly? The Pico has a voltage regulator, but it’s not infinite.
  3. Library Conflicts: Did you install the wrong library for your sensor? Always check the pinout diagram.
  4. Battery Sag: When the motor starts, the voltage might drop, causing the Pico to reset. Use a capacitor across the motor terminals or a better battery.
  5. Code Logic Errors: Is your robot stuck in an infinite loop? Add a print() statement to your code to see what’s happening.

Remember: Debuging is 50% of the job. Don’t get discouraged if your robot spins in circles. It’s part of the process!


🚀 Advanced Concepts: Adding Machine Learning to Your Pico


Video: Raspberry Pi Pico – A Beginners Guide.








You might think machine learning (ML) is reserved for massive servers. Think again. The Pico can run tiny ML models right on the edge!

What is TinyML?
TinyML is the practice of running machine learning models on microcontrollers. It allows your robot to recognize patterns, like a specific sound or a hand gesture, without needing an internet connection.

How to get started:

  1. Train the Model: Use Edge Impulse (a free platform) to train a model on your computer. You can upload sensor data (like accelerometer readings) and label them (e.g., “shake,” “tap,” “still”).
  2. Export to C: Edge Impulse generates C code that you can drop into your Pico project.
  3. Run on Pico: The Pico processes the sensor data in real-time and makes decisions based on the model.

Real-World Example:
Imagine a robot that can distinguish between a dog barking and a human speaking. With TinyML, your Pico can do this locally!

Why it matters:

  • Privacy: Data never leaves the robot.
  • Speed: No latency from sending data to the cloud.
  • Reliability: Works even without WiFi.

The Future: We are just scratching the surface. Soon, your Pico robots will be able to learn new tricks on the fly, adapting to their environment like a real animal.


Conclusion

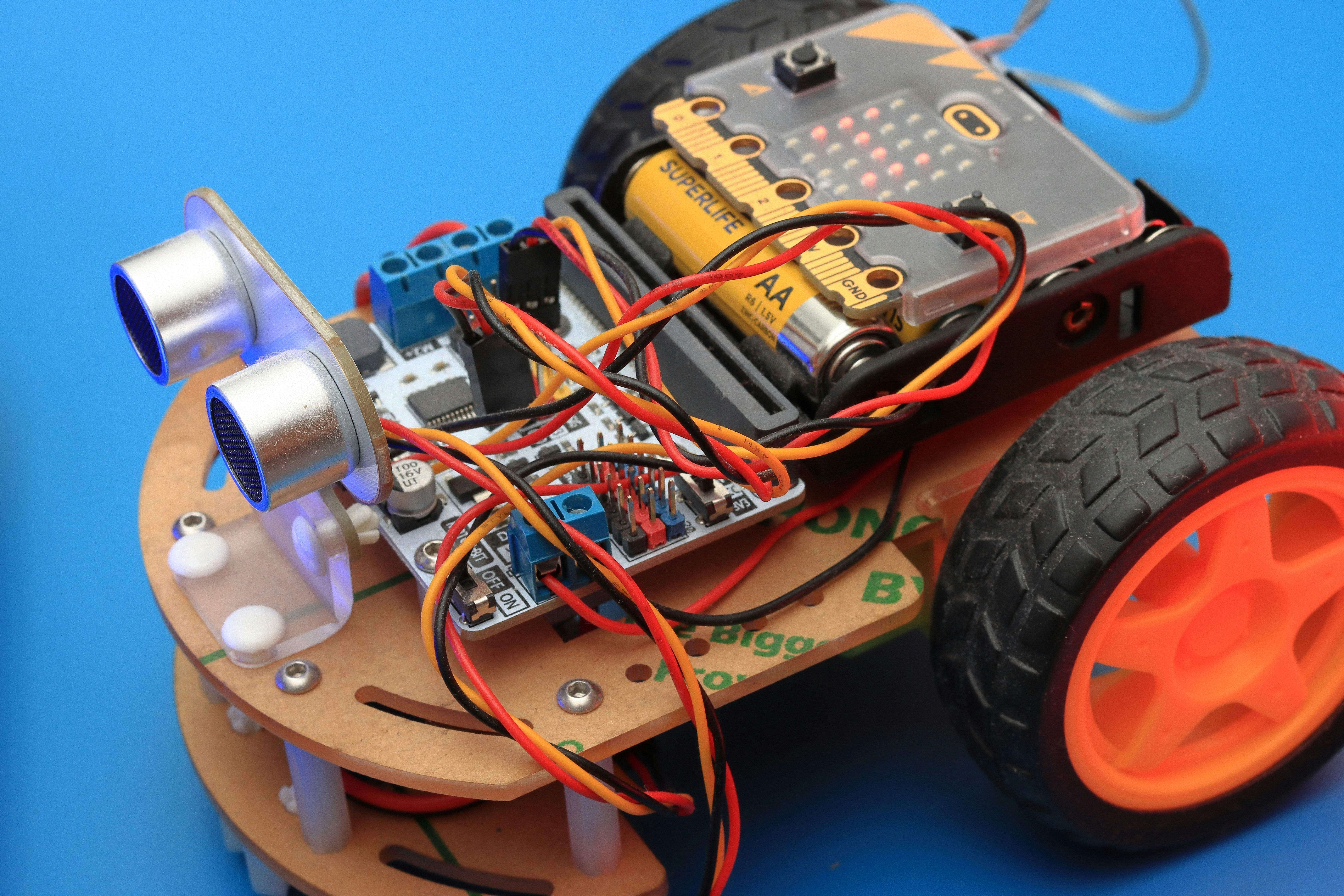

a small robot car with wheels and wires attached to it

So, where does this leave us? We started with a simple question: Can a beginner really build a robot with a Raspberry Pi Pico? The answer is a resounding yes.

From the humble line-follower to the complex self-balancing bot, the Pico has proven itself to be the ultimate platform for aspiring roboticists. It strips away the complexity of traditional robotics, leaving you with a powerful, affordable, and incredibly flexible tool.

Our Top Recommendation:
If you are just starting out, don’t try to build everything from scratch. Grab a PicoBricks Kit or the SparkFun XRP. These kits remove the headache of sourcing components and let you focus on the fun part: coding and creativity.

The Journey Ahead:
You’ve learned the basics of hardware, software, sensors, and even a taste of machine learning. But the real learning happens when you start experimenting. What will your robot do? Will it explore the garden? Will it sort your LEGO bricks? The only limit is your imagination.

Final Thought: Remember the “PiDog” story we mentioned earlier? That father and son duo proved that robotics isn’t about being a genius; it’s about curiosity and the willingness to try. So, grab your Pico, fire up Thony, and start building. The world of robotic coding is waiting for you.


Ready to take the next step? Here are the tools and resources we recommend:

👉 CHECK PRICE on:

Books to Read:

  • Raspberry Pi Pico in Action by Andrew Robinson
  • Make: Getting Started with MicroPython by Nigel McFarlane
  • TinyML: Machine Learning with TensorFlow Lite on Arduino and Ultra-Low-Power Microcontrollers by Pete Warden

❓ FAQ

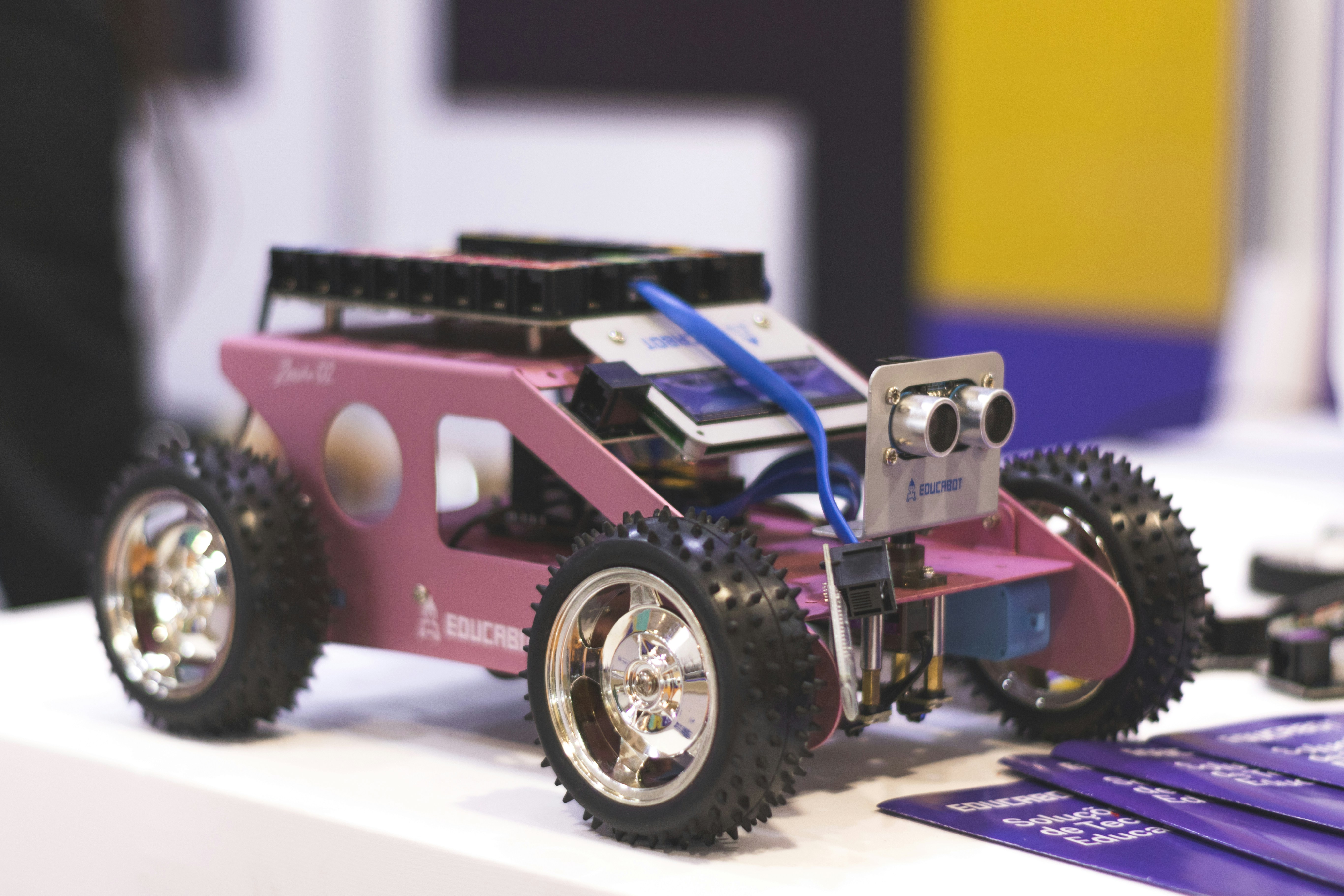

pink car toy

Are there any pre-built libraries or frameworks available for the Raspberry Pi Pico that can simplify the process of building and coding robotic projects for beginners?

Yes, absolutely! The MicroPython and CircuitPython ecosystems are rich with libraries.

  • machine module: Built into MicroPython, handles GPIO, PWM, and I2C.
  • adafruit-circuitpython libraries: Adafruit maintains a massive collection of drivers for almost every sensor imaginable (e.g., adafruit_mpu6050, adafruit_hcsr04).
  • PicoBricks Library: If you use the PicoBricks board, their custom library abstracts away the complexity, allowing you to control motors and sensors with simple commands like pico_bricks.move_forward().
  • Edge Impulse: For machine learning, this platform provides a framework to train and deploy models directly to the Pico.

What are the key differences between using the Raspberry Pi Pico and other microcontrollers, such as Arduino, for robotic projects and coding?

The main differences lie in architecture and ease of use:

  • Processor: The Pico uses a dual-core ARM Cortex-M0+, while most Arduinos use a single-core AVR (like the Uno) or a more powerful SAMD (like the MKR). The Pico’s dual-core allows for better multitasking.
  • Language: Arduino uses C/C++, which requires manual memory management and compilation. The Pico supports MicroPython/CircuitPython, which is interpreted and easier for beginners to read and write.
  • I/O: The Pico has PIO (Programmable I/O), a unique feature that allows for extremely precise timing and custom protocols, something Arduinos struggle without external hardware.
  • Cost: The Pico is generally cheaper ($4 vs $20+ for many Arduinos).

We’ve covered the top 10 in the main article, but here’s a quick recap:

  • Line Followers: Use IR sensors to follow a path.
  • Obstacle Avoiders: Use ultrasonic sensors to navigate mazes.
  • Robotic Arms: Use servos to mimic human hand movements.
  • Self-Balancing Bots: Use IMUs to stay upright.
  • Maze Solvers: Combine sensors and algorithms to find the exit.
  • IoT Weather Stations: Monitor environmental data and send it to the cloud.

How do I connect sensors and actuators to the Raspberry Pi Pico to create a robotic system that can perceive and respond to its surroundings?

Connection depends on the sensor type:

  • Digital Sensors (Buttons, IR): Connect to GPIO pins. Use Pin class in MicroPython.
  • Analog Sensors (Potentiometers, LDRs): Connect to ADC pins (GP26-GP29). Use ADC class.
  • I2C Sensors (IMUs, OLEDs): Connect SDA to GP4 and SCL to GP5 (or other I2C pins). Use I2C class.
  • Actuators (Motors, Servos): Connect to PWM-capable GPIO pins. Use PWM class. Always use a motor driver for DC motors.

What programming languages are supported by the Raspberry Pi Pico for robotic projects, and which one is best for beginners?

  • MicroPython: Best for beginners. Easy syntax, interactive REPL.
  • CircuitPython: Very similar to MicroPython, great for beginners, especially with Adafruit hardware.
  • C/C++: Best for advanced users needing maximum performance. Requires a compiler (like picotool or VS Code with PlatformIO).
  • Recommendation: Start with MicroPython or CircuitPython.

Can I use the Raspberry Pi Pico to build autonomous robots that can navigate and interact with their environment?

Yes! The Pico is fully capable of autonomous navigation.

  • Sensors: Use ultrasonic, IR, or LiDAR for obstacle detection.
  • Algorithms: Implement pathfinding algorithms like A* or simple rule-based logic.
  • TinyML: Use machine learning to recognize objects or sounds.
  • Limitations: The Pico has limited memory compared to a full computer, so complex AI models must be optimized (TinyML).

What are the basic components required to build a robot using the Raspberry Pi Pico and how do I get started with coding?

Basic Components:

  1. Raspberry Pi Pico (or Pico W)
  2. Motor Driver (e.g., TB612FNG)
  3. DC Motors and Wheels
  4. Chassis
  5. Battery Pack
  6. Jumper Wires
  7. Sensors (optional but recommended)

Getting Started:

  1. Install Thony IDE.
  2. Connect Pico to PC while holding the BOOTSEL button.
  3. Install MicroPython firmware.
  4. Write your first script (e.g., blink an LED).
  5. Expand to motor control and sensors.

What is the easiest robot to build with a Raspberry Pi Pico for beginners?

The Line-Following Robot is widely considered the easiest. It requires minimal components (3 IR sensors, 2 motors, a chassis) and the logic is straightforward: “If left sensor sees black, turn left.” It provides immediate visual feedback and teaches the basics of sensor-motor interaction.

Read more about “🐍 CircuitPython vs Arduino: The Ultimate 2026 Showdown”

How do I code a line-following robot using Raspberry Pi Pico and MicroPython?

  1. Connect Sensors: Wire 3 IR sensors to GPIO pins.
  2. Read Values: Use Pin class to read the state of each sensor.
  3. Logic:
  • If Left Sensor = 1 (Black), Turn Left.
  • If Right Sensor = 1 (Black), Turn Right.
  • If Middle Sensor = 1 (Black), Go Straight.
  1. Motor Control: Use PWM to adjust motor speed for turning.
  2. Loop: Run this logic in an infinite loop.

What sensors are best for beginner robotic projects on Raspberry Pi Pico?

  • HC-SR04 (Ultrasonic): Great for distance measurement.
  • IR Reflective Sensors: Perfect for line following.
  • MPU6050 (IMU): Excellent for orientation and balance.
  • DHT2: Good for temperature and humidity.
  • PIR Motion Sensor: Simple motion detection.

Read more about “🤔 Does Raspberry Pi Pico Have WiFi? The Shocking Truth (2026)”

Can I control a Raspberry Pi Pico robot with a smartphone app?

Yes! If you use the Pico W (which has WiFi), you can:

  • Create a simple web server on the Pico and control it via a browser.
  • Use Bluetooth (BLE) to connect to a custom app.
  • Use platforms like Blynk or MIT App Inventor to build a control interface.

How much does it cost to build a simple robot with Raspberry Pi Pico?

A basic robot (Pico, 2 motors, chassis, battery, wires) can be built for $20-$30. If you add sensors and a motor driver, the cost might rise to $40-$50. It’s significantly cheaper than most commercial kits.

Read more about “🤖 12+ Top Robotics Libraries for CircuitPython & MicroPython (2026)”

What are some fun Raspberry Pi Pico robot projects for kids?

  • Dancing Otto Robot: A 3D-printed bipedal robot that dances.
  • RC Car: A simple remote-controlled car.
  • Weather Station: A robot that reports the weather.
  • Gesture-Controled Hand: A hand that mimics your movements.
  • Maze Solver: A robot that finds its way out of a maze.

Read more about “15 Robotics Coding Projects for Kids That Spark Genius 🤖 (2025)”

How do I power a Raspberry Pi Pico robot for mobile projects?

  • Li-Po Batteries: Lightweight and high capacity. Use a TP4056 charger module.
  • AA Batteries: 4x AA batteries (6V) are a safe and easy option.
  • Voltage Regulation: Ensure the voltage regulator on the Pico can handle the battery voltage (up to 5.5V).
  • Power Switch: Always include a switch to turn the robot on and off.

Read more about “🤖 MicroPython vs Python: The Ultimate 2026 Showdown for Robotics”

Leave a Reply

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.
