Have you ever wondered how a microcontroller the size of a postage stamp can power robots, control sensors, and even run your custom USB keyboard? Welcome to the world of the Raspberry Pi Pico, the tiny powerhouse that’s redefining what affordable embedded computing can do in 2025. Whether you’re a beginner eager to blink your first LED or a seasoned coder ready to harness the Pico’s unique Programmable I/O (PIO) capabilities, this guide has you covered.

At Robotic Coding™, we’ve spent countless hours tinkering, debugging, and building with the Pico — and we’re here to share everything we’ve learned. From running scripts automatically on power-up (yes, it’s easier than you think!) to fixing pesky USB serial connection issues, and from powering your projects efficiently to exploring advanced Pico projects, this article is your all-in-one resource. Curious about how the Pico stacks up against Arduino and ESP32? Or how to turn a second Pico into a hardware debugger? Stick around, because we’re diving deep — and the best part is, you don’t need to be a rocket scientist to follow along!

Key Takeaways

  • Raspberry Pi Pico offers exceptional value with its dual-core ARM Cortex-M0+ and innovative PIO subsystem, perfect for both beginners and pros.
  • Running scripts automatically on power-up requires saving your code as main.py on the Pico’s internal filesystem—not in BOOTSEL mode.
  • Troubleshooting USB serial device issues often boils down to enabling USB stdio in your CMake build and using a proper data USB cable.
  • Programming options include MicroPython for ease and C/C++ for performance, letting you choose the best fit for your project.
  • The Pico W variant adds Wi-Fi and Bluetooth, unlocking IoT and networking possibilities.
  • A rich ecosystem of accessories and debugging tools (like the Picoprobe) expands what you can build.
  • Compared to Arduino and ESP32, the Pico strikes a sweet spot in power, flexibility, and price.

Ready to start your Pico adventure?
👉 Shop Raspberry Pi Pico and accessories:

Dive in, and let’s unlock the full potential of your Raspberry Pi Pico!

Table of Contents

Here is the main body of the article, from the “Quick Tips and Facts” section up to the section before “Conclusion”.

⚡️ Quick Tips and Facts About Raspberry Pi Pico

Welcome, fellow tech adventurers, to the Robotic Coding™ deep dive! Before we get our hands dirty with code and wires, let’s get a bird’s-eye view of the tiny titan that is the Raspberry Pi Pico. What makes this little board punch so far above its weight class? Here are the specs and fun facts in a nutshell.

Feature Specification Why It’s Awesome! 🤩
Microcontroller Raspberry Pi RP2040 The first-ever in-house silicon from Raspberry Pi! It’s a powerhouse designed for flexibility.
CPU Dual-core Arm Cortex-M0+ @ 133MHz Two cores mean you can dedicate one to intense calculations while the other handles peripherals. Multitasking magic!
SRAM 264KB on-chip A generous amount of RAM for a microcontroller, letting you run complex applications.
Flash Memory 2MB on-board QSPI Plenty of space for your MicroPython or C/C++ code and libraries.
GPIO Pins 26 multi-function pins Connect a universe of sensors, LEDs, and motors. Your imagination is the limit!
Key Feature Programmable I/O (PIO) Create custom hardware interfaces in software. It’s like having tiny, specialized co-processors you design yourself!
Programming MicroPython, C/C++ Easy for beginners with MicroPython, powerful for pros with C/C++.
Connectivity USB 1.1 (Device & Host) Can act as a device (like a keyboard) or a host (to connect other USB devices).
Power Input 1.8V – 5.5V DC Super flexible power options, from batteries to your computer’s USB port.

Did you know? The ‘2040’ in RP2040 stands for: 2 cores, 0 for M0+ processor, 4 for ~2^4 x 16KB RAM (256KB), and 0 for no on-board non-volatile memory. A little nerdy, but hey, that’s us!

🔍 The Evolution and Background of Raspberry Pi Pico and RP2040 Microcontroller

Here at Robotic Coding™, we’ve been fans of the Raspberry Pi since the very first model landed. For years, Raspberry Pi was synonymous with single-board computers (SBCs) – tiny, affordable machines that could run a full Linux operating system. They were perfect for learning to code, building media centers, or even light server work.

But the team at Raspberry Pi noticed a gap. What about the world of microcontrollers? The world of real-time control, blinking LEDs, reading sensors, and driving motors with precision timing? This was the domain of boards like the Arduino.

So, they didn’t just decide to build another microcontroller board; they decided to build their own chip from the ground up! After years of development, they unveiled the RP2040 microcontroller in 2021. And its debut vehicle? The humble, yet revolutionary, Raspberry Pi Pico.

This was a game-changer. Instead of using an off-the-shelf chip, they crafted a dual-core ARM processor with a unique secret weapon: Programmable I/O (PIO). This feature allows developers to create custom hardware protocols, offloading timing-critical tasks from the main CPU. It was a bold move that gave the Pico capabilities far beyond its price point. The Pico wasn’t just another board; it was a statement.

🛠️ Getting Started: Unboxing and Setting Up Your Raspberry Pi Pico

So, you’ve got your hands on a Pico. That little green rectangle is your ticket to a world of amazing projects. But where do you start? Let’s get this show on the road!

Our Expert Rating

Aspect Rating (1-10) Comments
Ease of Use 9/10 The drag-and-drop firmware update is brilliant for beginners.
Performance 8/10 Dual-core and PIO are fantastic, but it lacks the raw power of an ESP32 for some tasks.
Features 7/10 Great I/O, but the base model lacks Wi-Fi/Bluetooth (hello, Pico W!).
Documentation 10/10 Raspberry Pi’s documentation is the gold standard. It’s clear, comprehensive, and fantastic.
Community 9/10 A massive, helpful, and creative community has sprung up around the Pico.
Value for Money 10/10 Unbeatable. The power you get for the price is simply astounding.

Step 1: The “Unboxing”

Your Pico probably came in a simple anti-static bag. There are no frills here, just the board itself. You’ll notice the castellated edges, which are great for soldering directly onto other circuit boards. For beginners, we highly recommend getting a Pico with pre-soldered headers or soldering them on yourself. This makes it easy to pop into a breadboard.

Step 2: Installing MicroPython (The Easy Way)

The Pico is a blank slate. The first thing we need to do is give it a brain, and for that, we’ll use MicroPython.

  1. Get the Firmware: Head over to the Raspberry Pi documentation page and download the latest MicroPython UF2 file for the Pico. A UF2 file is a special format that the Pico understands.
  2. Enter BOOTSEL Mode: This is the magic trick. Press and hold the little white BOOTSEL button on your Pico.
  3. Connect to Your Computer: While still holding the button, plug your Pico into your computer using a USB data cable. ✅ Pro Tip: Make sure it’s a data cable, not just a charging cable! A charging-only cable will power the Pico but won’t allow data transfer, leading to a lot of head-scratching.
  4. Drag and Drop: Your computer will see the Pico as a small USB mass storage device, probably named “RPI-RP2”. Simply drag and drop the UF2 file you downloaded onto this drive.
  5. Reboot: The Pico will automatically reboot, and just like that, it’s now running MicroPython!

Step 3: Your First “Hello, World!” with Thonny

The best friend of any Pico beginner is the Thonny IDE. It’s a simple Python editor with built-in support for MicroPython devices.

  1. Install Thonny: Download and install it from their website.
  2. Configure the Interpreter: Open Thonny. In the bottom-right corner, click on the interpreter selection box (it might say something like “Python 3.x.x”). Choose “MicroPython (Raspberry Pi Pico)”. Thonny should automatically detect the port. If not, you can select it manually.
  3. Write Your Code: In the main editor window, type: print("Hello, Robotic Coding!")
  4. Run It! Click the green “Run” button. You should see your message appear in the “Shell” panel at the bottom.

You’ve just programmed a microcontroller! How cool is that?! For a more in-depth visual guide, the “Pico Course for Beginners” video we’ve featured above is an excellent 4-hour workshop that covers everything from coding to electronics. You can jump to it here: #featured-video.

👉 CHECK PRICE on:

💻 Programming Raspberry Pi Pico: MicroPython vs C/C++ – Which One Wins?

This is the big question! The Pico is fluent in two main languages, and the one you choose depends on your project and your personality. Think of it as choosing between a sports car and a monster truck. Both are awesome, but for different reasons.

MicroPython: The Friendly Speedster 🐍

MicroPython is a lean and efficient implementation of the Python 3 programming language, optimized to run on microcontrollers. It’s our top recommendation for beginners and for rapid prototyping.

  • Benefits:

    • ✅ Easy to Learn: The syntax is clean and readable. If you’ve ever written a line of Python, you’ll feel right at home. It’s a cornerstone of modern Coding Languages.
    • ✅ Interactive (REPL): You can connect to the Pico and type commands directly, getting instant feedback. This is amazing for testing sensors or debugging on the fly.
    • ✅ Fast Development: Writing and testing code is incredibly quick. No long compile times!

  • Drawbacks:

    • ❌ Slower Performance: Being an interpreted language, it’s not as fast as code compiled down to the bare metal. For tasks requiring microsecond precision, you might hit a wall.
    • ❌ Higher Memory Usage: It requires more memory to run than a lean C program.

C/C++: The Bare-Metal Beast ⚙️

For maximum power, speed, and control, C/C++ is the way to go. This is how you talk directly to the hardware, squeezing every last drop of performance out of the RP2040.

  • Benefits:

    • ✅ Maximum Performance: Your code is compiled into machine instructions that the CPU executes directly. It’s as fast as it gets.
    • ✅ Full Control: You have access to every feature of the hardware, including the powerful PIO for creating custom peripherals.
    • ✅ Small Footprint: Well-written C code can be incredibly memory-efficient.

  • Drawbacks:

    • ❌ Steeper Learning Curve: C/C++ is more complex, with manual memory management and pointers to worry about.
    • ❌ Longer Development Cycle: The write-compile-upload-debug cycle is slower than with MicroPython.
    • ❌ Less Forgiving: A small mistake can cause your whole program to crash without much explanation.

So, Which One Should You Choose?

Our advice? Start with MicroPython. It’s the path of least resistance and the most fun for getting started. You’ll be blinking LEDs and reading sensors in minutes. As your projects become more ambitious and you find yourself needing more speed or low-level control, you can then make the leap to the C/C++ SDK. There’s no wrong answer, only the right tool for the job!

🔌 How to Fix “No USB Serial Device When Plugging in Pico” – Troubleshooting Guide

Okay, let’s talk about one of the first major roadblocks many C/C++ developers hit. You’ve meticulously set up the C/C++ SDK, compiled the “Hello, World” example, flashed the UF2 file… and then, silence. Your computer refuses to see the Pico as a serial device. You might be thinking, “Did I fry my board?!”

Relax. You’re not alone. We’ve seen this countless times, and it’s almost always a software setup issue. A user on the Raspberry Pi forums perfectly captured the frustration: “The serial device is just not showing up.” Let’s break down why this happens and how to fix it for good.

The Root of the Problem: Missing USB Code

When you compile a C/C++ project, the build system (CMake) needs to be explicitly told to include the necessary code for USB communication. If it doesn’t, it just… doesn’t. As one developer discovered, “Other than that warning, the build just silently ignores USB support.” The Pico will run your code, but it won’t have the ability to talk back to you over USB.

Your Troubleshooting Checklist

Follow these steps, and we’ll get you back on track.

  1. Check Your CMakeLists.txt File: This is the master recipe for your project. You need to tell it to enable USB standard I/O (stdio). Make sure this line is present and uncommented in your CMakeLists.txt:

    pico_enable_stdio_usb(your_project_name 1)

    This tells CMake to link the TinyUSB library and enable serial output over USB for your specific project.

  2. Global Enable (Alternative Method): You can also enable it globally when you first run CMake by adding a flag:

    cmake -DPICO_STDIO_USB=1 ..

    This is useful if you want all projects in your build directory to have USB serial enabled by default.

  3. The tinyusb Submodule: The Pico SDK relies on external libraries, called submodules. The most critical one for USB is tinyusb. When you first cloned the pico-sdk, you should have cloned it recursively:

    git clone -b master https://github.com/raspberrypi/pico-sdk.git --recurse-submodules

    If you forgot the --recurse-submodules part, don’t worry! Just navigate into your pico-sdk directory and run:

    git submodule update --init

    This will pull down the necessary tinyusb library files. If this is missing, CMake will warn you that it’s skipping tinyusb, which is the core of the problem.

  4. Rebuild Your Project: After making changes to CMake or updating submodules, you must delete your old build files and re-run the build process from scratch to ensure the changes are applied.

    • Navigate to your build directory.
    • Run rm -rf * to clear it out.
    • Run cmake .. (with any flags you need) again.
    • Run make.

  5. Check Your Cable (Again!): We can’t stress this enough. A bad USB cable has sent many a developer on a wild goose chase. Try a different one!

By following this checklist, you should see your Pico pop up as a serial device (/dev/ttyACM0 on Linux, or a COM port on Windows), ready to printf its heart out.

📦 7 Must-Have Accessories and Add-ons for Raspberry Pi Pico Projects

A Pico is great on its own, but it truly shines when you start connecting it to the outside world. Here’s our curated list of essential accessories to build out your electronics lab.

  1. Solderless Breadboard: This is non-negotiable. A breadboard allows you to build and test circuits without any soldering. The MB-102 breadboard is a classic for a reason.
  2. Jumper Wires: You’ll need these to connect everything on your breadboard. Get a good variety pack of male-to-male, male-to-female, and female-to-female wires.
  3. Basic Component Kit: Look for a kit that includes a variety of resistors, capacitors, LEDs in different colors, push buttons, and maybe a potentiometer or two. Elegoo and Smraza make some excellent starter kits.
  4. Sensors, Sensors, Sensors!: This is where the fun begins. A DHT11/DHT22 for temperature and humidity, a passive infrared (PIR) sensor for motion detection, and an ultrasonic distance sensor are great starting points.
  5. An OLED or LCD Display: Getting visual feedback from your project is incredibly rewarding. A small SSD1306 OLED display is easy to wire up via I2C and there are great MicroPython libraries for it.
  6. Motors and Motor Drivers: To make things move, you’ll need motors. Start with some simple DC motors or a servo motor. Crucially, you’ll need a motor driver board like the L298N because the Pico’s GPIO pins can’t provide enough current to drive a motor directly.
  7. A Second Pico for Debugging: This is a pro-level move. You can flash a second Pico with special “Picoprobe” firmware, turning it into a powerful hardware debugger for your main Pico project. It allows you to step through your C/C++ code line-by-line.

👉 Shop Accessories on:

⚡ 10 Cool Raspberry Pi Pico Projects to Ignite Your Creativity

Ready for some inspiration? The Pico is the perfect brain for countless projects, from simple gadgets to complex robots. Here are ten ideas to get you started, ranging from beginner to advanced. For even more ideas, check out our guide to the 🤖 Top 10 DIY Robotic Kits Using Raspberry Pi Pico (2025).

  1. Weather Station: Use a BME280 or DHT22 sensor to measure temperature, humidity, and pressure, and display it on an OLED screen.
  2. Custom USB Keyboard: Program the Pico to act as a USB Human Interface Device (HID). Create a custom macro pad for your favorite shortcuts in games or software.
  3. NeoPixel Light Show: Control a strip of addressable WS2812B LEDs (also known as NeoPixels) to create amazing animations and lighting effects. The Pico’s PIO is perfect for this!
  4. Intruder Alarm: Combine a PIR motion sensor with a buzzer to create a simple alarm for your room.
  5. Tiny Web Server (with Pico W): Use the Wi-Fi-enabled Pico W to host a simple web page that can control an LED or display sensor data. A great intro to the world of Robotics.
  6. Line-Following Robot: A classic robotics project. Use infrared sensors to detect a black line on a white surface and use motors to steer the robot along the path.
  7. Digital Music Player: Use an I2S DAC (Digital-to-Analog Converter) module to play WAV files from an SD card.
  8. Game Console Emulator: This is an advanced project, but the RP2040 is powerful enough to emulate simple, old-school game consoles.
  9. Logic Analyzer: Use the Pico’s high-speed GPIO and PIO to build a tool that can help you debug other electronic circuits.
  10. MIDI Controller: Create a custom musical instrument or a control surface for your favorite digital audio workstation (DAW) software.

🔋 Powering Your Raspberry Pi Pico: Best Practices and Power Options

Powering your Pico seems simple, but getting it right is crucial for a stable project. Let’s break down the options.

1. Micro USB (VBUS)

  • How it works: This is the easiest method. Just plug it into your computer or a USB wall adapter. The on-board regulator will convert the 5V from the USB port down to the 3.3V the Pico’s brain needs.
  • Best for: Debugging, programming, and projects that will be tethered to a computer.
  • Voltage: 5V.

2. External Supply (VSYS)

  • How it works: You can supply power directly to the VSYS pin. This pin is connected to the on-board regulator.
  • Best for: Embedded projects running on batteries or a custom power supply. This is how you’d power a robot that needs to move around.
  • Voltage: 1.8V to 5.5V. This wide range is fantastic, meaning you can use various battery sources, like 2 or 3 AA batteries in series, or a single-cell LiPo battery.

⚠️ Important Power Rules ⚠️

  • Never connect power to the 3V3(OUT) pin! This pin is an output from the regulator, designed to power your sensors. Supplying power to it can damage the board.
  • Use a Common Ground: When using an external power supply, always make sure the ground (GND) of your power supply is connected to a GND pin on the Pico. This ensures all parts of the circuit have a common reference point.
  • Current Limits: The 3.3V regulator on the Pico can supply a limited amount of current (a few hundred milliamps). If you’re driving a lot of LEDs or motors, you need to power them from an external source (like your VSYS input), not from the 3V3(OUT) pin.

🧰 Debugging and Development Tools for Raspberry Pi Pico Enthusiasts

When your code doesn’t work, print() statements can only get you so far. To really understand what’s happening inside your Pico, you need to step up your debugging game.

The Power of Print (Don’t Discount It!)

In MicroPython and C/C++, printing status messages to the USB serial console is the first and easiest line of defense. It’s simple, effective, and often all you need to find a bug.

Stepping Up to a Hardware Debugger (SWD)

For C/C++ development, the real power comes from the Serial Wire Debug (SWD) interface. This is a two-pin interface (SWDIO and SWCLK) that lets you peek inside the RP2040’s brain while it’s running. With a hardware debugger, you can:

  • Pause (break) execution at any line of code.
  • Step through your code one line at a time.
  • Inspect the values of variables in real-time.
  • Examine the memory of the microcontroller.

Using a Picoprobe

So how do you connect to the SWD interface? You need a “debug probe”. And in a wonderfully meta move, the best and cheapest debug probe for a Pico is… another Pico!

By flashing a special firmware called Picoprobe onto a second Pico, you turn it into a USB-to-SWD bridge. You connect this Picoprobe to your main “target” Pico’s SWD and GND pins, and then you can use professional-grade tools like Visual Studio Code (with the Cortex-Debug extension) and GDB (the GNU Debugger) to debug your code like a pro. This is essential for anyone serious about Robotics Education.

🌐 Connecting Raspberry Pi Pico to the Internet: IoT and Networking Basics

The standard Raspberry Pi Pico is a bit of a hermit—it doesn’t have built-in Wi-Fi or Bluetooth. But what if your project needs to fetch data from the web or be controlled from your phone? Welcome to the Internet of Things (IoT)!

Meet the Raspberry Pi Pico W

The easiest solution is the Raspberry Pi Pico W. It’s a slightly upgraded version of the original that includes an on-board Wi-Fi and Bluetooth chip. For any new IoT project, this is absolutely the board we recommend. It makes connecting to a network incredibly simple in MicroPython. You can:

  • Fetch data from APIs (e.g., weather forecasts, stock prices).
  • Send sensor data to cloud services like Adafruit IO or ThingSpeak.
  • Create a simple web server to control your project from a browser.
  • Use MQTT protocol for lightweight machine-to-machine communication.

This opens up a whole new world of possibilities, touching on concepts from Artificial Intelligence when you start processing that IoT data.

Adding Wi-Fi to a Standard Pico

What if you already have a standard Pico? You can still get it online! The most common way is by using an ESP8266 module (like the ESP-01). This is a tiny, low-cost Wi-Fi chip that you can communicate with from the Pico using UART serial commands (known as AT commands). It’s more complex to set up than using a Pico W, but it’s a great learning experience in hardware communication.

🔄 How to Run Scripts Automatically on Raspberry Pi Pico Power-On

This is one of the most common questions we hear from beginners. You’ve perfected your blinking LED script in Thonny, and now you want it to run automatically whenever you plug your Pico into a power bank. How do you make your code permanent?

It’s surprisingly simple, but it trips people up because of a common misconception about the BOOTSEL mode.

The BOOTSEL Mode Misconception

Let’s be crystal clear: BOOTSEL mode is only for updating the firmware (the underlying MicroPython or C/C++ UF2 file). You do not save your Python scripts by dragging them to the drive that appears in BOOTSEL mode.

The Correct Way: Saving main.py

MicroPython on the Pico is designed to look for a specific file when it boots up: main.py. If it finds this file in its internal filesystem, it will run it automatically.

Here is the correct procedure, as highlighted by a helpful user on the Raspberry Pi forums who noted that Thonny’s interpreter button “is the key.”

  1. Connect Your Pico Normally: Plug your Pico into your computer without holding the BOOTSEL button.
  2. Open Thonny: Make sure your interpreter is set to “MicroPython (Raspberry Pi Pico)”.
  3. Write or Open Your Code: Get your script ready in the Thonny editor.
  4. Save to the Pico: Go to File > Save As.... Thonny will pop up a dialog asking where you want to save the file: “This computer” or “Raspberry Pi Pico”.
  5. Choose “Raspberry Pi Pico”.
  6. Name the File: In the file name box, type exactly main.py and click OK.

That’s it! Now, unplug your Pico and plug it into any USB power source. Your script will start running instantly. To stop it or edit it again, just reconnect to Thonny, and you can open the main.py file directly from the Pico’s filesystem (visible in the “Files” pane in Thonny) and click the “Stop” button.

📊 Comparing Raspberry Pi Pico with Other Microcontrollers: Arduino, ESP32, and More

The Pico is amazing, but it’s not the only player in the game. How does it stack up against other popular microcontrollers? Let’s compare the heavyweights.

Feature Raspberry Pi Pico Arduino UNO R3 ESP32-WROOM-32
CPU Dual-core ARM M0+ @ 133MHz Single-core AVR @ 16MHz Dual-core Tensilica LX6 @ 240MHz
SRAM 264KB 2KB 520KB
Flash Memory 2MB (External) 32KB (Internal) 4MB (External)
Wi-Fi No (Yes on Pico W) No ✅ Yes
Bluetooth No (Yes on Pico W) No ✅ Yes
GPIO Pins 26 14 34
Special Feature Programmable I/O (PIO) Simplicity, huge ecosystem Integrated Wi-Fi/Bluetooth
Beginner Friendliness High (MicroPython) Very High (Arduino IDE) Medium (More complex)
Best For… Fast I/O, custom peripherals, learning Python on hardware. Absolute beginners, simple sensor projects, vast shield library. IoT projects, anything requiring Wi-Fi, high-performance tasks.

Our Takeaway

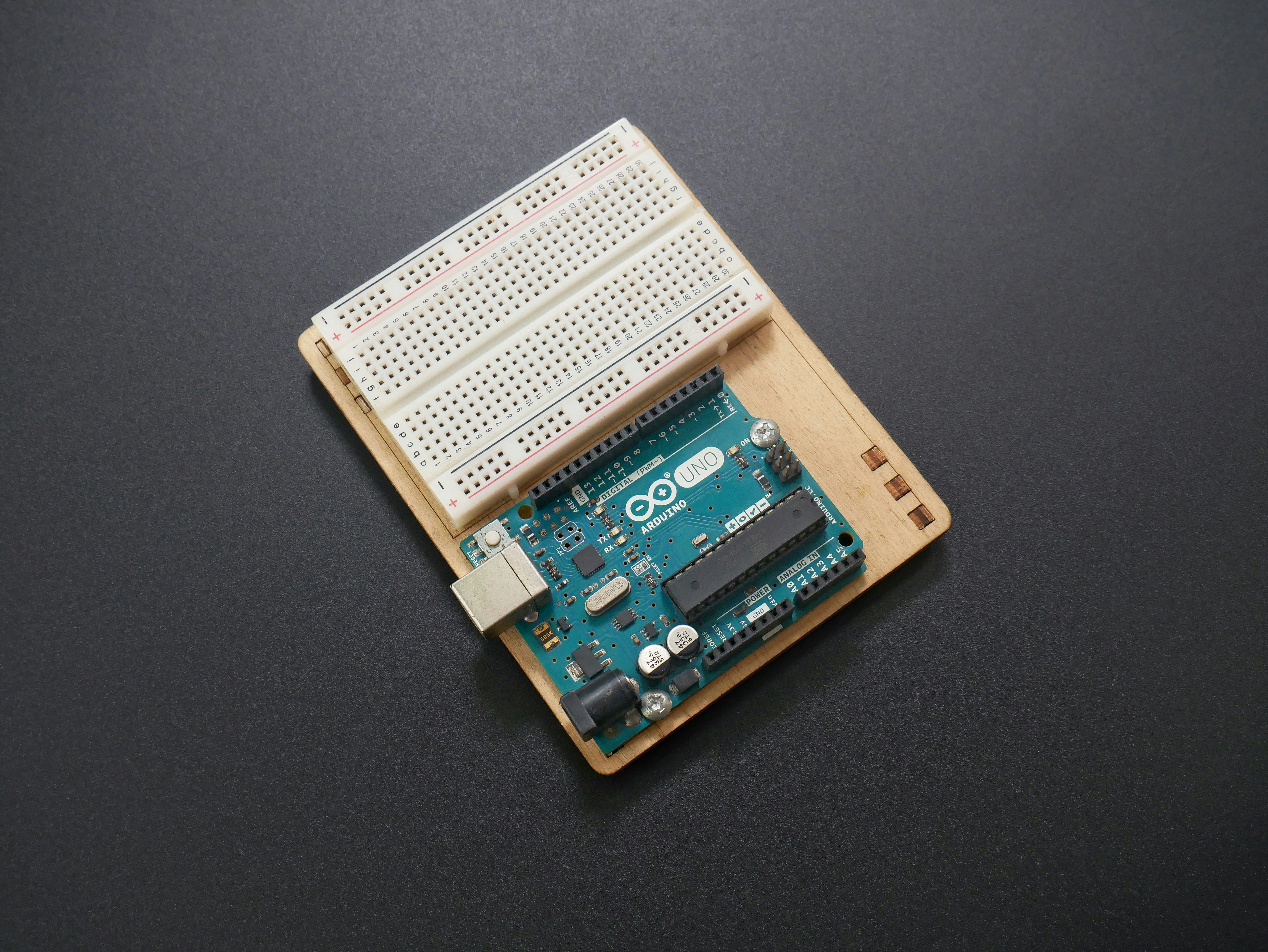

  • The Arduino UNO is the granddaddy of the maker movement. It’s slower and has far less memory, but it’s incredibly simple and robust. It’s a fantastic board for your very first steps into electronics.
  • The ESP32 is an absolute beast. It’s significantly more powerful than the Pico and comes with Wi-Fi and Bluetooth baked in. It’s the go-to choice for complex IoT projects but can be more intimidating for beginners.
  • The Raspberry Pi Pico hits a sweet spot. It’s more powerful than an Arduino, easier to get started with than an ESP32 (thanks to MicroPython and great documentation), and its unique PIO feature is a killer advantage for projects that need custom, high-speed communication.

💡 Tips and Tricks to Optimize Your Raspberry Pi Pico Performance

Want to push your Pico to its limits? Here are a few advanced techniques we use at Robotic Coding™ to squeeze out every ounce of performance.

Overclocking the RP2040

Did you know you can overclock the Pico? The default clock speed is 133MHz, but it can often run stably at 250MHz or even higher! In MicroPython or C, you can change the system clock speed with a single command. This can give your computationally intensive projects a serious speed boost. Be aware that this increases power consumption and heat, so proceed with caution!

Mastering Programmable I/O (PIO)

We’ve mentioned PIO a few times, and that’s because it’s the Pico’s superpower. PIO is a set of eight simple state machines that can manipulate GPIO pins independently of the main CPU.

  • What can you do with it? You can bit-bang protocols that are very timing-sensitive, like driving NeoPixel LEDs, without the main CPU even breaking a sweat. You can create interfaces for obscure old hardware or even generate VGA video signals!
  • Why is it better? It offloads the work from the CPU. While the PIO is busy flashing LEDs with perfect timing, your two main cores are free to run your complex logic.

Running Code from RAM

This is a fascinating, low-level trick. Normally, your code runs from the external flash memory. However, it’s possible to copy a function into the Pico’s fast on-chip SRAM and execute it from there. As one advanced user demonstrated, you can even dynamically generate machine code in memory and then execute it. This is an old-school technique used for “highly optimized machine code generation.” While not for the faint of heart, executing critical functions from RAM can provide a significant speed increase because accessing SRAM is much faster than accessing the external flash chip.

🔒 Security Considerations When Using Raspberry Pi Pico in Projects

When your creation starts talking to the internet, security suddenly becomes very important. An insecure IoT device can be a liability. Here are some things to keep in mind, especially when using the Pico W.

  • Secure Your Wi-Fi Connection: Always use modern encryption standards like WPA2/WPA3 for your Wi-Fi credentials. Never hardcode passwords in plain text in your code if you plan to share it. Use a separate secrets.py file (and don’t commit it to public Git repositories!) to store credentials.
  • Use Encrypted Communication: When sending data to the cloud, use protocols that support encryption, like HTTPS and MQTTS. This prevents eavesdroppers from snooping on your sensor data.
  • Sanitize Inputs: If your Pico can be controlled over the network (e.g., via a web server), be careful about the commands it accepts. Sanitize and validate all inputs to prevent malicious commands from being executed.
  • Physical Security: Don’t forget that microcontrollers are often deployed in the physical world. If someone can gain physical access to your device, they can potentially reprogram it or tap into its communication lines (like UART or SWD). Consider enclosing your project in a case.
  • Firmware Updates: Keep your MicroPython firmware and any libraries you use up to date to benefit from the latest security patches.

While the Pico isn’t designed for high-security applications, following these basic practices is a good habit for any connected project, from a simple home weather station to a more complex Robotic Simulations controller.

The launch of the RP2040 wasn’t a one-off event; it was the birth of an entire ecosystem. The future for this little chip is incredibly bright.

  • The RP2040 Proliferation: Raspberry Pi made the RP2040 chip available for other companies to buy and use in their own products. We’re now seeing a massive explosion of third-party boards featuring the RP2040 from brands like Adafruit, SparkFun, and Pimoroni. These boards come in all shapes and sizes, with different features like more flash memory, built-in motor drivers, or STEMMA QT/Qwiic connectors.
  • Software and Library Growth: The community is constantly building new and better software for the Pico. The MicroPython and CircuitPython libraries are expanding every day, making it easier to interface with new sensors and components. The C/C++ SDK is also continuously being improved.
  • What’s Next from Raspberry Pi? While Raspberry Pi hasn’t announced a “Pico 2” yet, we can speculate. Future versions could include a more powerful core, more RAM, or perhaps integrated features for machine learning and AI acceleration. The success of the Pico W shows they are keen to add features like wireless connectivity. Whatever comes next, you can be sure it will follow the Raspberry Pi philosophy of high performance at a low cost.

🎯 Conclusion: Is Raspberry Pi Pico the Ultimate Microcontroller for You?

After our deep dive into the Raspberry Pi Pico, it’s clear this microcontroller punches well above its weight. From its dual-core ARM Cortex-M0+ processor to the innovative Programmable I/O (PIO) subsystem, the Pico offers a unique blend of power, flexibility, and affordability that few competitors can match.

Positives:

  • ✅ Exceptional value: Unbeatable price-to-performance ratio.
  • ✅ Flexible programming: Supports both beginner-friendly MicroPython and professional-grade C/C++.
  • ✅ PIO magic: Enables custom hardware interfaces that are impossible or very difficult on other microcontrollers.
  • ✅ Strong community and documentation: Raspberry Pi’s ecosystem is mature and welcoming.
  • ✅ Expandable ecosystem: Accessories, add-ons, and third-party RP2040 boards are growing rapidly.
  • ✅ Pico W variant: Adds Wi-Fi and Bluetooth, opening doors to IoT and robotics networking.

Negatives:

  • ❌ No built-in wireless on base model: You’ll need the Pico W or external modules for connectivity.
  • ❌ Limited native debugging tools: Requires a second Pico or external debugger for full C/C++ debugging.
  • ❌ Less RAM than some competitors: Not ideal for extremely memory-heavy applications.
  • ❌ Steeper learning curve for PIO: While powerful, PIO programming requires a good grasp of low-level concepts.

Our Verdict: If you’re looking for a versatile, affordable, and powerful microcontroller for robotics, IoT, or embedded projects, the Raspberry Pi Pico is a fantastic choice. Beginners will appreciate the ease of MicroPython, while advanced users will revel in the capabilities unlocked by C/C++ and PIO. The Pico W’s wireless features make it future-proof for connected applications.

If you’re still wondering about running scripts automatically on power-up or fixing USB serial issues, remember: save your code as main.py on the Pico’s filesystem (not in BOOTSEL mode), and ensure your CMake build includes USB stdio support with the tinyusb submodule properly initialized. These small but crucial details will save you hours of frustration.

So, what are you waiting for? Grab a Pico, start coding, and let your robotic creations come to life!

👉 Shop Raspberry Pi Pico and Accessories:

Recommended Books for Raspberry Pi Pico and Robotics:

  • Programming the Raspberry Pi Pico/W in C by Simon Monk — A practical guide to mastering the Pico’s C SDK.
    Amazon Link

  • Getting Started with MicroPython on Raspberry Pi Pico by Gareth Halfacree — Perfect for MicroPython beginners.
    Amazon Link

  • Exploring Raspberry Pi: Interfacing to the Real World with Embedded Linux by Derek Molloy — Great for bridging SBCs and microcontrollers in robotics.
    Amazon Link

❓ FAQ: Your Burning Raspberry Pi Pico Questions Answered

What programming languages can I use with Raspberry Pi Pico for robotics?

You can use MicroPython and C/C++ most commonly. MicroPython is beginner-friendly and excellent for rapid prototyping, especially for robotics sensor integration and control logic. C/C++ offers low-level hardware access and maximum performance, essential for time-critical tasks like motor control or real-time sensor processing. Both languages have strong support and libraries tailored for robotics applications.

How do I connect sensors to a Raspberry Pi Pico for robot projects?

The Pico exposes 26 multi-function GPIO pins that support protocols like I2C, SPI, and UART. Most common sensors (temperature, distance, accelerometers) use I2C or SPI. You connect the sensor’s power, ground, and data lines to the corresponding Pico pins, then use MicroPython or C libraries to read data. For example, the popular BME280 environmental sensor uses I2C and has well-supported libraries.

Can Raspberry Pi Pico control motors in robotic applications?

Absolutely! The Pico can control motors via PWM signals for speed control and direction pins for H-bridge motor drivers. Since the Pico’s GPIO pins cannot supply enough current to drive motors directly, you use motor driver boards like the L298N or TB6612FNG. The Pico’s precise timing and dual cores make it excellent for simultaneous sensor reading and motor control.

What are the best beginner projects using Raspberry Pi Pico in robotics?

Start simple! Here are some favorites:

  • Blinking LEDs and reading button inputs.
  • Controlling a single servo motor.
  • Building a line-following robot using infrared sensors.
  • Creating a motion detector with a PIR sensor.
  • Driving NeoPixel LED strips for visual feedback.

These projects build foundational skills in electronics, programming, and debugging.

How do I program a Raspberry Pi Pico to follow a line in a robot?

Line-following robots typically use infrared reflectance sensors to detect the contrast between a black line and a white surface. You connect these sensors to the Pico’s ADC or digital inputs, then write code to read sensor values and adjust motor speeds accordingly using PWM signals. Implementing a simple Proportional (P) controller can smooth out the robot’s movements.

What libraries support robotics development on Raspberry Pi Pico?

  • MicroPython Libraries: machine module for GPIO, time for delays, neopixel for LED strips, and third-party sensor libraries like bme280 or mpu6050.
  • C/C++ SDK: Official Raspberry Pi Pico SDK includes drivers for GPIO, PWM, I2C, SPI, and PIO. The PIO subsystem is especially useful for custom protocols.
  • Third-party: Pico Robotics libraries and community projects on GitHub offer reusable code for motors, sensors, and communication.

How does Raspberry Pi Pico compare to Arduino for robotic coding?

The Pico offers more processing power (dual-core 133MHz vs. Arduino UNO’s single-core 16MHz), more memory, and flexible programmable I/O. It supports modern languages like MicroPython, making it more accessible for Python programmers. Arduino has a larger ecosystem and simpler IDE but is less powerful and flexible. For robotics, Pico is often better for complex or timing-critical tasks.

For mobile robots, power the Pico via the VSYS pin with a regulated supply between 1.8V and 5.5V. Common choices include:

  • LiPo batteries (3.7V nominal) with a protection circuit.
  • AA battery packs (2-4 cells in series).
  • USB power banks for tethered or semi-mobile projects.

Always ensure a common ground between the Pico and motors, and use separate power sources or regulators for motors to avoid voltage dips that can reset the Pico.

Robotic Coding™ hopes this comprehensive guide has empowered you to unleash the full potential of your Raspberry Pi Pico. Whether you’re just starting or pushing the boundaries of embedded robotics, the Pico is a trusty companion on your coding journey. Happy hacking! 🤖✨

Leave a Reply

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Trending now

[2023] 15 Exciting Robotics Courses for High School Students
Best Programming Language for Robotics in 2024
What Coding Language Is Used in Robotics in [2023]?
Raspberry Pi Pico Mastery: 10 Essential Tips & Tricks (2025) 🚀
