I still remember the first time my code made an LED blink—my roommate thought I’d summoned a tiny lightning bug on my desk. That single blink was the gateway drug to building everything from plant-sitting robots to Wi-Fi mood lamps. In this guide, we’ll relive that magic together: 25 beginner-friendly microcontroller projects that go way beyond “Hello, World.” Stick around—project #25 is a tiny machine-learning wand that turns your hand gestures into spells (yes, really). And if you’re wondering whether these skills pay off, the global microcontroller market just cracked $22.5 billion—so you’re in good company.

Key Takeaways

  • Start simple, grow fast: Begin with the classic Arduino UNO, then graduate to the Raspberry Pi Pico or ESP32 for Wi-Fi magic.
  • 25 step-by-step projects—from blinking LEDs to AI wands—each with wiring diagrams and code snippets.
  • Essential starter kits bundle boards, sensors, and wires so you can build on day one.
  • Join the maker movement: Share your builds on Instructables or at your local makerspace for instant feedback and bragging rights.

👉 Shop Starter Kits on:

Table of Contents

⚡️ Quick Tips and Facts
🕰️ From Vacuum Tubes to Tiny Chips: A Microcontroller History
🧰 Choosing Your First Microcontroller Board
🔌 Essential Tools & Starter Kits
📚 Learning Resources & Communities
🚀 25 Beginner-Friendly Microcontroller Projects
  1. Blink the On-Board LED
  2. Push-Button Traffic Light
  3. Potentiometer-Controlled RGB Mood Lamp
  4. Ultrasonic Distance Alarm
  5. Servo Sweeping Arm
  6. Temperature & Humidity Monitor
  7. IR Remote Volume Knob
  8. OLED Mini Weather Station
  9. Capacitive Touch Piano
  10. Stepper-Motor Drawing Machine
  11. Bluetooth LE Chat Console
  12. Soil-Moisture Plant Sitter
  13. NeoPixel Rainbow Wand
  14. RFID Door Lock
  15. Real-Time Clock (RTC) Kitchen Timer
  16. Joystick-Controlled Robot Car
  17. Voice-Controlled LED Strip
  18. Light-Tracking Solar Panel
  19. DIY Oscilloscope
  20. Gesture-Controlled Mouse
  21. EEPROM Data Logger
  22. Wi-Fi Repeater Status Lamp
  23. Capacitive Soil-NPK Sensor
  24. DIY Smart Plug
  25. Edge-Impulse TinyML Magic Wand
🧪 Debugging Like a Pro
🎨 Level-Up: Sensors, Shields & Add-Ons
🌱 From Breadboard to PCB
🤝 Join the Maker Movement
🎓 Certification Paths & Career Boost
🛡️ Safety & Best Practices
🏁 Conclusion
🔗 Recommended Links
❓ FAQ
📚 Reference Links

Here at Robotic Coding™, we’ve zapped our fingers, fried our share of chips, and spent countless nights coaxing stubborn code into submission. And you know what? We’d do it all again in a heartbeat! Why? Because that first moment your code makes something happen in the real world—a light blinks, a motor spins—is pure magic. ✨

You’re about to embark on an incredible journey into the world of microcontrollers, the tiny brains behind almost every piece of modern electronics. Forget boring textbooks. We’re going to build, tinker, and maybe even break a few things. Ready to turn your ideas into reality? Let’s dive in!

⚡️ Quick Tips and Facts

Jumping into microcontroller projects can feel like drinking from a firehose. So, before we get our hands dirty, here are some quick-fire facts and tips to get you oriented.

  • What is a Microcontroller? Think of it as a tiny, self-contained computer on a single chip. It has a processor, memory, and input/output (I/O) peripherals. Unlike your desktop PC’s processor, it’s designed to do one thing and do it well.
  • Arduino isn’t a microcontroller. Surprise! Arduino is an open-source platform that includes a development board (which has a microcontroller, usually an ATmega328P), and a user-friendly software environment (the Arduino IDE). It’s the gold standard for beginners.
  • The Power of Pico: The Raspberry Pi Pico is a game-changer. It’s a powerful, low-cost microcontroller board from the makers of the famous Raspberry Pi computer, and it’s fantastic for learning both C/C++ and a beginner-friendly language called MicroPython.
  • Voltage Matters! Most beginner boards run on either 5V (like the Arduino Uno) or 3.3V (like the Raspberry Pi Pico and ESP32). Mixing these up can permanently damage your components. Always check the voltage!
  • The “Blink” Sketch is Your “Hello, World!”: In programming, the first thing you learn is how to print “Hello, World!”. In the microcontroller world, the equivalent is making an LED blink. It’s a simple but profound first step.
  • The Global Market is HUGE: The global microcontroller market was valued at over USD 22.5 billion in 2022 and is projected to grow significantly. The skills you’re learning are incredibly valuable!

🕰️ From Vacuum Tubes to Tiny Chips: A Microcontroller History

black usb cable on blue round plate

Ever wonder how we got from room-sized computers to chips smaller than your thumbnail? It’s a wild story! We’re not just talking about building projects; we’re talking about standing on the shoulders of giants.

The Dawn of Computing

Back in the 1940s, computers like the ENIAC used thousands of bulky, unreliable vacuum tubes and filled entire rooms. The idea of a personal computer, let alone a tiny one for a hobby project, was pure science fiction. The invention of the transistor in 1947 at Bell Labs was the first domino to fall, replacing fragile vacuum tubes with a smaller, more reliable alternative.

The Integrated Circuit Revolution

The next leap was the integrated circuit (IC), or “microchip,” co-invented by Jack Kilby and Robert Noyce in the late 1950s. This allowed engineers to cram multiple transistors onto a single piece of silicon. Moore’s Law was born, and the race to miniaturization was on!

The Birth of the Microcontroller

Fast forward to 1971. A company called Intel was tasked with creating a set of chips for a Japanese calculator company, Busicom. An engineer named Ted Hoff had a revolutionary idea: instead of a complex set of custom chips, why not create a single, programmable chip—a “microprocessor”? This led to the Intel 4004, the world’s first commercially available microprocessor.

But a microprocessor needs friends—external memory, input/output chips, etc. The real breakthrough for hobbyists came in 1974 when Texas Instruments released the TMS 1000, which is widely regarded as the first true microcontroller. It integrated the CPU, memory (RAM and ROM), and I/O ports all onto a single chip. Suddenly, the “computer-on-a-chip” was a reality, paving the way for the smart devices, Robotics, and DIY electronics we love today.

From there, we got the iconic Intel 8051, Microchip’s PIC family, Atmel’s AVR (the heart of Arduino), and now, powerful ARM-based cores in chips like the ESP32 and Raspberry Pi Pico. Every time you upload code, you’re part of this incredible legacy!

🧰 Choosing Your First Microcontroller Board


Video: How to pick the best microcontroller for your project – Electronics with Becky Stern | DigiKey.








Walking into the world of microcontrollers is like walking into a candy store. So many colors, so many flavors! Which one do you pick? Don’t worry, we’ve tested them all. For a beginner, the choice usually boils down to three titans: Arduino UNO, Raspberry Pi Pico, and ESP32.

Here’s our team’s breakdown to help you choose your champion.

Feature Arduino UNO R3 Raspberry Pi Pico ESP32-WROOM-32
Ease of Use ⭐️⭐️⭐️⭐️⭐️ (9/10) ⭐️⭐️⭐️⭐️ (8/10) ⭐️⭐️⭐️ (7/10)
Performance ⭐️⭐️ (4/10) ⭐️⭐️⭐️⭐️ (8/10) ⭐️⭐️⭐️⭐️⭐️ (9/10)
Connectivity ⭐️ (2/10) ⭐️ (2/10) ⭐️⭐️⭐️⭐️⭐️ (10/10)
Community/Docs ⭐️⭐️⭐️⭐️⭐️ (10/10) ⭐️⭐️⭐️⭐️ (8/10) ⭐️⭐️⭐️⭐️ (8/10)
Power Consumption Good Excellent Fair (Wi-Fi is thirsty)
Primary Language C++ (Arduino) C/C++, MicroPython C++ (Arduino), MicroPython

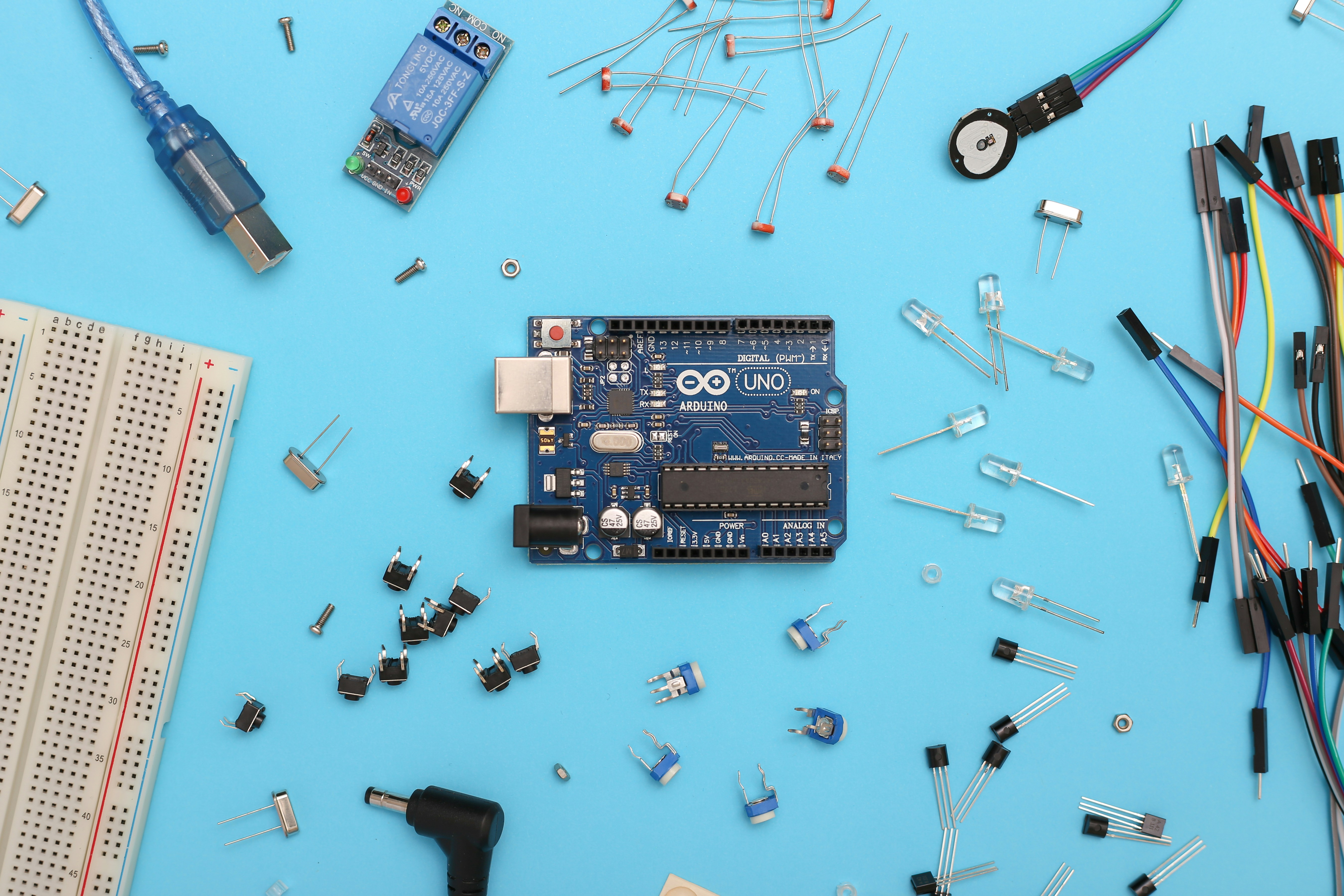

H3: The Reliable Classic: Arduino UNO R3

The Arduino UNO is the Toyota Corolla of the microcontroller world. It’s not the fastest or the flashiest, but it is incredibly reliable, ridiculously easy to learn, and has an unparalleled amount of community support.

  • ✅ Pros:

    • Massive Community: You can find a tutorial or forum post for literally any project you can imagine.
    • 5V Logic: More forgiving for some older components and simple circuits.
    • Shields: A huge ecosystem of “shields”—add-on boards that plug right in—makes expanding its functionality a breeze.
    • Simple IDE: The Arduino IDE is basic, but it’s perfect for getting started without being overwhelmed.

  • ❌ Cons:

    • Slow Processor: The 16MHz ATmega328P processor is slow by modern standards.
    • Limited Memory: With only 2KB of RAM, you’ll hit its limits on more complex projects.
    • No Built-in Connectivity: You’ll need extra shields for Wi-Fi or Bluetooth.

Our Take: If you are an absolute beginner and want the smoothest possible entry into electronics and coding, start with an Arduino UNO. It’s a cornerstone of Robotics Education for a reason.

H3: The Powerful Newcomer: Raspberry Pi Pico

Don’t let the name fool you; this isn’t a single-board computer like its bigger Raspberry Pi cousins. The Raspberry Pi Pico is a lean, mean, microcontroller machine. It boasts a custom-designed chip (the RP2040) that is seriously powerful for its price.

  • ✅ Pros:

    • Dual-Core Power: The dual-core ARM Cortex-M0+ processor running at 133MHz is a beast.
    • Tons of RAM: 264KB of RAM is a luxury for microcontroller projects.
    • MicroPython Support: It’s one of the best boards for running MicroPython, an easier language for many beginners than C++.
    • PIO (Programmable I/O): A unique feature that lets you create custom hardware interfaces. It’s advanced, but incredibly cool.

  • ❌ Cons:

    • 3.3V Logic: Requires more care when interfacing with 5V components.
    • Younger Ecosystem: The community is growing fast but is still smaller than Arduino’s.
    • No Built-in Connectivity: Like the UNO, the base Pico model lacks Wi-Fi/Bluetooth (though the new Pico W model fixes this!).

Our Take: If you have a little coding experience (especially with Python) or want a board that you won’t outgrow as quickly, the Raspberry Pi Pico is an amazing choice.

H3: The Connectivity King: ESP32

Need to connect your project to the internet or your phone? The ESP32 is your undisputed champion. It’s a powerhouse board with built-in Wi-Fi and Bluetooth, making it the go-to for any Internet of Things (IoT) project.

  • ✅ Pros:

    • Built-in Wi-Fi & Bluetooth: This is its killer feature. No extra shields needed.
    • Fast Dual-Core Processor: Often faster than the Pico, with plenty of processing power.
    • Great Value: You get an incredible amount of functionality for a very low cost.
    • Arduino IDE Compatible: You can program it just like an Arduino, which lowers the learning curve.

  • ❌ Cons:

    • Complex: With so many features, the documentation can be dense and a bit intimidating for first-timers.
    • Power Hungry: Wi-Fi and Bluetooth radios can drain batteries quickly.
    • Pinout Confusion: There are many different ESP32 board layouts, which can be confusing.

Our Take: If your project idea starts with “I want to control it from my phone…” or “I want it to get data from the internet…”, jump straight to the ESP32. The initial learning curve is slightly steeper, but it’s the key to unlocking the world of IoT and Artificial Intelligence projects.

👉 Shop Microcontroller Boards on:

🔌 Essential Tools & Starter Kits


Video: Workbench Essentials When Starting Arduino! (Beginner Guide).








Okay, you’ve picked your board. Now what? You can’t build a house with just a hammer, and you can’t build a robot with just a microcontroller. Here’s the essential gear our team recommends for every beginner’s workbench.

The Must-Have Tools

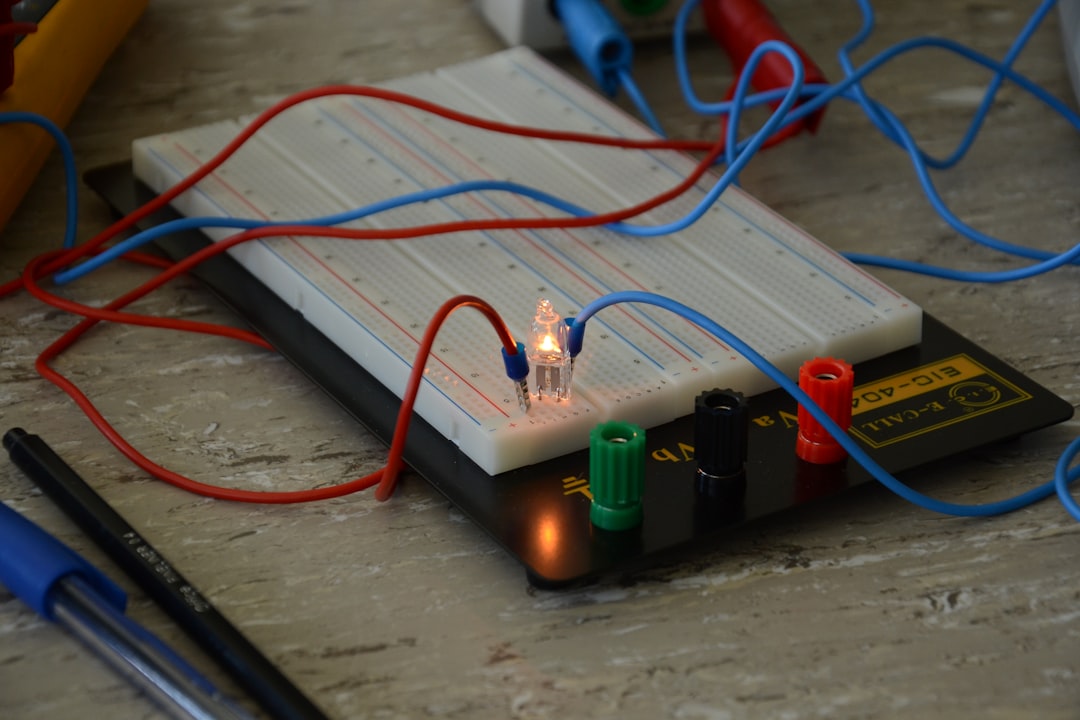

  • Solderless Breadboard: This is your prototyping playground. It allows you to connect components and build circuits without any permanent soldering. Get a full-size one; you’ll use the space.
  • Jumper Wires: The veins of your project. Get a good variety pack of male-to-male, male-to-female, and female-to-female wires.
  • USB Cable: The umbilical cord that connects your microcontroller to your computer for power and programming. Make sure you have the right one for your board (usually USB-A to USB-B for an UNO, or Micro-USB/USB-C for a Pico/ESP32).
  • Multimeter: Your best friend for debugging. It lets you measure voltage, current, and resistance, helping you find out why your circuit isn’t working. You don’t need a fancy one to start.
  • Basic Components: A small collection of LEDs, resistors, push-buttons, and a potentiometer will get you through the first dozen projects.

Why a Starter Kit is Your Best Bet

Honestly, the easiest way to get all of this is with a starter kit. You’ll get a curated collection of components that are known to work together, plus a handy case to keep it all organized. It’s almost always cheaper than buying everything individually.

One of our favorite recommendations for absolute beginners is the Elegoo UNO R3 Super Starter Kit. It’s packed with a high-quality Arduino clone, a huge variety of sensors and components, and a fantastic tutorial CD. For the price, it’s an unbeatable value.

👉 Shop Starter Kits on:

📚 Learning Resources & Communities

The best tool you have is knowledge, and luckily, the internet is overflowing with it. But it can be hard to separate the signal from the noise. Here are the go-to resources we use and recommend at Robotic Coding™.

Official Documentation (Your Source of Truth)

When you’re stuck, go to the source. The official documentation is written by the people who made the hardware and software. It’s dense but accurate.

Communities (Your Lifeline)

You are not alone! Someone, somewhere, has had the exact same problem as you.

  • Arduino Forum: The official forum. A bit old-school, but packed with experts.
  • Stack Overflow: The Q&A site for all programmers. Tag your questions with arduino, raspberry-pi-pico, or esp32.
  • Reddit: The communities here are fantastic for sharing projects and getting quick help. Check out r/arduino, r/raspberrypipico, and r/esp32.

Video Tutorials (Your Visual Guide)

Sometimes you just need to see someone do it. YouTube is an incredible resource for visual learners.

  • Paul McWhorter: His tutorials are legendary. He has fantastic, step-by-step series for Arduino, Raspberry Pi, and Python.
  • GreatScott!: For when you’re ready for more complex and inspiring projects.
  • Andreas Spiess: The “guy with the Swiss accent” is the authority on all things ESP32 and IoT.

🚀 25 Beginner-Friendly Microcontroller Projects


Video: Top 20 Arduino Projects for 2025: Science Exhibition & DIY Ideas!








Alright, theory time is over. It’s time to make stuff! We’ve curated a list of 25 projects that will take you from a complete novice to a confident maker. We’ll start simple and gradually add more components and concepts. Let’s build!

The rite of passage for every embedded engineer. This project requires zero external components and teaches you the fundamental structure of a program and the delay() function.

  • Components: Your microcontroller board, a USB cable.
  • Difficulty: ⭐️ (1/5)
  • Key Concept: digitalWrite(), pinMode(), delay().

2. Push-Button Traffic Light

Control a set of red, yellow, and green LEDs with a push button. This introduces you to reading digital inputs and using if statements to make decisions.

  • Components: 3 LEDs (red, yellow, green), 3 resistors, 1 push button, breadboard, wires.
  • Difficulty: ⭐️ (1/5)
  • Key Concept: digitalRead(), if-else logic, pull-up/pull-down resistors.

3. Potentiometer-Controlled RGB Mood Lamp

Use a potentiometer (a variable resistor) to control the brightness of an LED or the color of an RGB LED. This is your first foray into analog inputs!

  • Components: 1 potentiometer, 1 RGB LED (common cathode), 3 resistors, breadboard, wires.
  • Difficulty: ⭐️⭐️ (2/5)
  • Key Concept: analogRead(), analogWrite() (PWM), mapping values.

4. Ultrasonic Distance Alarm

Use an HC-SR04 ultrasonic sensor to measure distance and sound a buzzer if an object gets too close. It’s like the reverse-parking sensor in a car!

  • Components: HC-SR04 sensor, 1 piezo buzzer, breadboard, wires.
  • Difficulty: ⭐️⭐️ (2/5)
  • Key Concept: Using libraries, sending a trigger pulse, measuring an echo pulse time.

5. Servo Sweeping Arm

Make a small SG90 servo motor sweep back and forth like a radar screen. This is a fantastic introduction to controlling motors.

  • Components: 1 SG90 micro servo, breadboard, wires.
  • Difficulty: ⭐️⭐️ (2/5)
  • Key Concept: The Servo.h library, pulse-width modulation (PWM) for position control.

6. Temperature & Humidity Monitor

Read the ambient temperature and humidity using a DHT11 or DHT22 sensor and display the results on the Serial Monitor.

  • Components: 1 DHT11 or DHT22 sensor, breadboard, wires.
  • Difficulty: ⭐️⭐️ (2/5)
  • Key Concept: Digital communication protocols (one-wire), using a library to handle complex data.

7. IR Remote Volume Knob

Use any old TV remote to control… well, anything! Start by decoding the signals and using them to increase or decrease a variable, simulating a volume knob.

  • Components: 1 IR receiver diode (like a TSOP38238), any IR remote.
  • Difficulty: ⭐️⭐️⭐️ (3/5)
  • Key Concept: Decoding IR protocols, switch-case statements.

8. OLED Mini Weather Station

Combine the DHT sensor from project #6 with a tiny, crisp OLED screen to display the data. This teaches you about the I2C communication protocol.

  • Components: DHT sensor, 0.96″ I2C OLED display, breadboard, wires.
  • Difficulty: ⭐️⭐️⭐️ (3/5)
  • Key Concept: I2C communication, using graphics libraries to draw text and shapes.

9. Capacitive Touch Piano

Many modern microcontrollers (like the ESP32) have built-in capacitive touch pins. Turn pieces of fruit or foil into piano keys that play tones on a buzzer.

  • Components: ESP32 board, piezo buzzer, alligator clips, some fruit!
  • Difficulty: ⭐️⭐️ (2/5)
  • Key Concept: Capacitive sensing, the touchRead() function, tone() function.

10. Stepper-Motor Drawing Machine

Control a 28BYJ-48 stepper motor with a ULN2003 driver board. These motors allow for precise, step-by-step rotation, which is fundamental to 3D printers and CNC machines.

  • Components: 28BYJ-48 stepper motor with ULN2003 driver.
  • Difficulty: ⭐️⭐️⭐️ (3/5)
  • Key Concept: Stepper motor theory (full-step, half-step), using a driver board.

11. Bluetooth LE Chat Console

Use an ESP32 or a Pico W to create a simple Bluetooth Low Energy (BLE) serial “chat” service that you can connect to with your smartphone.

  • Components: ESP32 or Raspberry Pi Pico W.
  • Difficulty: ⭐️⭐️⭐️ (3/5)
  • Key Concept: BLE services and characteristics, asynchronous communication.

12. Soil-Moisture Plant Sitter

Never kill a houseplant again! Use a soil moisture sensor to detect when your plant is thirsty and light up an LED as a reminder.

  • Components: Capacitive soil moisture sensor, 1 LED, 1 resistor.
  • Difficulty: ⭐️⭐️ (2/5)
  • Key Concept: Reading analog values from a real-world sensor.

13. NeoPixel Rainbow Wand

Control a strip of individually addressable RGB LEDs (like Adafruit’s NeoPixels or WS2812B strips) to create amazing rainbow effects.

  • Components: A strip or stick of WS2812B LEDs.
  • Difficulty: ⭐️⭐️⭐️ (3/5)
  • Key Concept: Timing-critical protocols, managing data arrays (for the pixels).

14. RFID Door Lock

Build a simple “lock” using an RC522 RFID reader. When the correct card or fob is scanned, it activates a servo or lights up a green LED.

  • Components: MFRC-522 RFID reader module, RFID card/fob, 1 servo, LEDs.
  • Difficulty: ⭐️⭐️⭐️ (3/5)
  • Key Concept: SPI communication protocol, comparing arrays/UIDs.

15. Real-Time Clock (RTC) Kitchen Timer

Use a DS3231 RTC module to keep accurate time, even when the microcontroller is powered off. Build a simple kitchen timer with it.

  • Components: DS3231 RTC module, I2C OLED display, buttons, buzzer.
  • Difficulty: ⭐️⭐️⭐️ (3/5)
  • Key Concept: I2C, timekeeping, managing state (e.g., running, paused, stopped).

16. Joystick-Controlled Robot Car

This is a big one! Use a simple 2WD robot chassis, a motor driver (like the L298N), and a joystick module to build and control your first robot. This is a core project in Robotics.

  • Components: Robot car chassis kit, L298N motor driver, joystick module.
  • Difficulty: ⭐️⭐️⭐️⭐️ (4/5)
  • Key Concept: H-Bridge motor control, mapping analog joystick values to motor speeds.

17. Voice-Controlled LED Strip

Using an ESP32, connect to a service like IFTTT or Adafruit IO to control an LED strip with your voice via Google Assistant or Alexa.

  • Components: ESP32, WS2812B LED strip.
  • Difficulty: ⭐️⭐️⭐️⭐️ (4/5)
  • Key Concept: Webhooks, APIs, MQTT protocol.

18. Light-Tracking Solar Panel

Use two photoresistors (LDRs) and a servo to make a mini solar panel that automatically turns to face the brightest light source.

  • Components: 2 photoresistors, 2 resistors, 1 servo, mini solar panel (optional).
  • Difficulty: ⭐️⭐️⭐️ (3/5)
  • Key Concept: Creating a simple feedback loop, analog comparisons.

19. DIY Oscilloscope

Use the fast analog-to-digital converter (ADC) on a Raspberry Pi Pico or ESP32 to build a very basic, but functional, oscilloscope that displays waveforms on a screen.

  • Components: Raspberry Pi Pico or ESP32, I2C or SPI screen.
  • Difficulty: ⭐️⭐️⭐️⭐️ (4/5)
  • Key Concept: ADC sampling rate, data buffering, graphical data visualization.

20. Gesture-Controlled Mouse

Use an MPU-6050 accelerometer and gyroscope module to control your computer’s mouse cursor. Your microcontroller will act as a USB HID (Human Interface Device).

  • Components: MPU-6050 module, a board with native USB support (like Pico or Arduino Leonardo).
  • Difficulty: ⭐️⭐️⭐️⭐️ (4/5)
  • Key Concept: Sensor fusion (combining accelerometer/gyro data), USB HID emulation.

21. EEPROM Data Logger

Your microcontroller has a small amount of built-in EEPROM (Electrically Erasable Programmable Read-Only Memory) that retains data when powered off. Use it to log sensor readings over time.

  • Components: Any microcontroller, a sensor (like a DHT11).
  • Difficulty: ⭐️⭐️ (2/5)
  • Key Concept: Non-volatile memory, reading/writing data byte by byte.

22. Wi-Fi Repeater Status Lamp

Use an ESP32 to ping a device on your network (like your main router) and change the color of an LED based on whether the ping succeeds. Great for monitoring a Wi-Fi extender.

  • Components: ESP32, RGB LED.
  • Difficulty: ⭐️⭐️⭐️ (3/5)
  • Key Concept: Network libraries, ICMP (ping) requests.

23. Capacitive Soil-NPK Sensor

This is a more advanced version of the soil moisture sensor. Some sensors can also measure Nitrogen, Phosphorus, and Potassium levels using the Modbus protocol over an RS485 interface.

  • Components: Soil NPK sensor, MAX485 TTL to RS-485 converter module.
  • Difficulty: ⭐️⭐️⭐️⭐️⭐️ (5/5)
  • Key Concept: Serial communication (UART), Modbus protocol, data packet parsing.

24. DIY Smart Plug

Warning: This project involves mains voltage and can be dangerous. With proper precautions and knowledge, you can use an ESP32 and a relay module to build your own Wi-Fi controlled smart plug.

  • Components: ESP32, 5V relay module, appropriate enclosure and wiring.
  • Difficulty: ⭐️⭐️⭐️⭐️⭐️ (5/5) – EXPERTS ONLY
  • Key Concept: High-voltage safety, relay control, web server on a microcontroller.

25. Edge-Impulse TinyML Magic Wand

Welcome to the cutting edge! Use a board with an accelerometer (like an Arduino Nano 33 BLE Sense) and a free service called Edge Impulse to train a tiny machine learning model that recognizes gestures. This is a gateway to on-device Artificial Intelligence.

  • Components: Arduino Nano 33 BLE Sense or similar.
  • Difficulty: ⭐️⭐️⭐️⭐️⭐️ (5/5)
  • Key Concept: TinyML (Machine Learning), data collection, model training and deployment.

🧪 Debugging Like a Pro


Video: Debugging Like A Pro.







Here’s a secret: writing the code is only half the battle. The other half is figuring out why it doesn’t work. We call this “debugging,” and it’s a skill in itself. A senior engineer at Robotic Coding™ once spent two days debugging a robot arm, only to find he’d plugged a wire into pin 12 instead of pin 13. It happens to everyone!

So, what do you do when your project just sits there, mocking you with its inaction?

The Holy Trinity of Debugging

  1. Check Your Wiring: Seriously. 90% of beginner problems are here. Is the wire in the right pin? Is it firmly seated in the breadboard? Is your component backward? (LEDs have a long leg and a short leg for a reason!).
  2. Check Your Code: The other 9%. A single typo—a missing semicolon ;, using a single equals sign = for comparison instead of a double ==—can bring everything to a halt. The compiler will often catch these, but logic errors are sneakier.
  3. Check Your Power: Is your board getting power? Is your 3.3V sensor plugged into a 5V pin? Use your multimeter to check voltages at key points in the circuit.

Master the Serial Monitor

The single most powerful debugging tool you have is the Serial.print() function (or just print() in MicroPython). It lets your microcontroller talk back to you through your computer.

  • Is my code even running? Put Serial.println("I'm alive!"); in your setup() function.
  • Is my loop running? Put Serial.println("Looping..."); in your loop() function.
  • What is this sensor value? Don’t guess! Print it out: Serial.println(sensorValue);
  • Is this if statement true? Put a print statement inside it: if (buttonState == HIGH) { Serial.println("Button is pressed!"); }

This “divide and conquer” approach lets you pinpoint exactly where your code is failing or what your sensors are actually seeing.

Understanding the Code, Not Just Copying It

A user on the TI microcontroller forums, Jens-Michael Gross, gave some sage advice that we echo constantly: “So it’s better to understand how these things are working and build your own code than just absorbing them into your projects.” It’s tempting to copy-paste code from a tutorial and call it a day. But you won’t learn anything. Take the time to understand why that code works. What does each line do? Change a value and see what happens. This active learning is how you truly level up.

🎨 Level-Up: Sensors, Shields & Add-Ons


Video: Beginner Arduino Project – Simple Sensor Puzzles.








Once you’ve mastered the basics, a whole universe of add-ons opens up. These components let you give your projects new senses and abilities, turning a simple blinking light into a sophisticated smart device.

Speaking the Lingo: I2C and SPI

As you add more complex components, you’ll encounter two communication protocols over and over: I2C and SPI.

  • I2C (Inter-Integrated Circuit): This is a two-wire protocol (SDA for data, SCL for clock). It’s great because you can connect dozens of devices to the same two pins, as long as they each have a unique address. It’s like a party line for your components. Many sensors and screens use I2C.
  • SPI (Serial Peripheral Interface): This is a faster, four-wire protocol (MISO, MOSI, SCLK, and CS). It’s more of a direct, one-to-one conversation. It’s often used for things that need high-speed data transfer, like SD card modules or some types of displays.

You don’t need to know the low-level details to start, as libraries handle the hard work. But knowing the difference will help you choose components and debug wiring.

A World of Sensors

Here are just a few of the amazing sensors you can add to your projects:

  • IMU (Inertial Measurement Unit): Modules like the MPU-6050 combine an accelerometer and a gyroscope to measure motion and orientation. Essential for drones, robots, and gesture controllers.
  • GPS (Global Positioning System): Add a NEO-6M module to give your project location awareness. Perfect for vehicle trackers or weather balloons.
  • Barometric Pressure Sensor: A BMP280 or BME280 can measure atmospheric pressure, which you can use to calculate altitude or predict weather changes.
  • Gas Sensors: The MQ series of sensors can detect various gases, from alcohol (MQ-3) to smoke and carbon monoxide (MQ-2). Great for safety projects.

Shields and Breakout Boards

  • Shields (Arduino): These are boards that stack directly on top of an Arduino UNO, instantly adding functionality like motor control, Ethernet, or a touchscreen.
  • Breakout Boards (Everywhere): Most sensors are tiny! A breakout board is a small PCB that “breaks out” the tiny pins of a sensor chip into larger, breadboard-friendly pins.
  • Feathers, Wings, and Things: Adafruit has a fantastic ecosystem of boards called “Feathers” and add-on boards called “Wings” that all work together, making complex projects much easier to assemble.

🌱 From Breadboard to PCB


Video: How to Make a Circuit Board (Beginner's Guide).








Your breadboarded project is a beautiful, chaotic mess of wires. It works! But it’s fragile. One bump and a wire comes loose. If you want to make your project permanent, durable, and professional, it’s time to learn about PCBs (Printed Circuit Boards).

Why Move to a PCB?

  • Reliability: Soldered connections are infinitely more reliable than jumper wires stuck in a breadboard.
  • Compactness: A well-designed PCB is much smaller and neater than a breadboard prototype.
  • Reproducibility: Once you have a design, you can order multiple copies, making it easy to build more than one of your project.

The Path to Your First PCB

  1. Schematic Capture: The first step is to formalize your breadboard circuit into a schematic. This is a logical diagram of how all the components are connected. You’ll use software like KiCad (free and amazing), Autodesk Eagle, or the web-based EasyEDA.
  2. PCB Layout: Next, you arrange the virtual components on a virtual board and draw the copper “traces” that connect them. This is an art form in itself!
  3. Gerber Files: Once your design is complete, you export it as a set of files called “Gerbers.” These are the universal blueprints used by PCB manufacturers.
  4. Fabrication: You upload your Gerber files to a manufacturer’s website. Companies like JLCPCB, PCBWay, and Oshpark make this incredibly easy and affordable. For a surprisingly low cost, they will manufacture your custom boards and ship them to you.

Holding your first custom-designed PCB in your hand is a milestone moment for any maker. It’s the point where your hobby project starts to feel like a real product.

🤝 Join the Maker Movement


Video: Make Dumb Electronics Smart for $3.








You are now part of a massive, global community of tinkerers, inventors, artists, and engineers known as the Maker Movement. This is a culture that celebrates hands-on learning, creativity, and sharing knowledge. Getting involved is one of the best ways to stay motivated and learn faster.

Where to Connect

  • Project Sharing Sites: Platforms like Instructables and Hackster.io are the heart of the online maker community. You can find inspiration for your next project, and more importantly, share what you’ve built! Documenting and sharing your work is a great way to solidify your own understanding.
  • Local Makerspaces: Search for a “makerspace” or “hackerspace” in your area. These are shared workshops filled with tools (like 3D printers, laser cutters, and soldering stations) and, more importantly, knowledgeable people who are happy to help.
  • Maker Faires: These are incredible, family-friendly events that are like a science fair, art show, and county fair all rolled into one. Attending a Maker Faire is one of the most inspiring things you can do. You’ll see amazing projects and meet the people who built them.

Don’t be afraid to ask questions or show off your “simple” blinking light project. We all started there, and the community is incredibly welcoming to newcomers.

🎓 Certification Paths & Career Boost


Video: Boost Your PMP Career in 2025: Get PMI's New CPMAI Certification Now!








While many of us get into microcontrollers for fun, the skills you’re developing are extremely valuable in the job market. Embedded systems engineers are in high demand in fields like IoT, automotive, consumer electronics, medical devices, and, of course, Robotics.

Formalizing Your Skills

If you want to add a credential to your resume, several organizations offer certifications:

  • Arduino Certification Program: Arduino offers an official certification exam that tests your knowledge of electronics, programming, and the Arduino platform. It’s a great way to prove your fundamental skills.
  • ARM Certifications: Since many modern microcontrollers (like the Pico and ESP32) use ARM Cortex-M cores, getting a certification from Arm can be a significant career booster, though these are typically geared more towards professionals.

From Hobby to Career

Even without a formal certification, a strong portfolio of projects is often more valuable to employers. A GitHub profile with well-documented code and a blog or YouTube channel showing off your projects can be a powerful tool in a job search. It demonstrates not just what you know, but also your passion, problem-solving skills, and ability to communicate complex ideas—all things that we at Robotic Coding™ look for in an engineer!

🛡️ Safety & Best Practices


Video: A Beginner's Guide to Microcontrollers.







We’re playing with electricity. While the low voltages in most beginner projects are generally safe, it’s crucial to build good habits from the start to protect yourself and your components.

  • ✅ Disconnect Power Before Wiring: Always unplug the USB cable or power supply before changing your circuit. This prevents accidental shorts that can fry your board.
  • ❌ Don’t Mix Voltages: As we mentioned, connecting a 5V output to a 3.3V input pin can kill the pin or the whole chip. Use a logic level shifter if you need to connect devices with different voltage levels.
  • ✅ Use Resistors for LEDs: An LED has almost no internal resistance. Connecting it directly to a pin will draw too much current, potentially burning out the LED and the microcontroller’s pin. Always use a current-limiting resistor (220Ω or 330Ω is a good start).
  • ❌ Avoid Static Discharge (ESD): You are a walking capacitor. On a dry day, you can build up enough static electricity to destroy a sensitive microchip just by touching it. Ground yourself by touching a large metal object (like a computer case) before handling components.
  • ✅ Double-Check Polarity: Some components, like LEDs and electrolytic capacitors, have a positive and a negative lead. Plugging them in backward can destroy them (capacitors can even pop!). Look for the long leg (+) on LEDs and the stripe (-) on capacitors.
  • ❌ Never Work with Mains Voltage Unsupervised: Projects like the DIY Smart Plug are for experts only. Household AC voltage is extremely dangerous and can be lethal. Do not attempt these projects without a deep understanding of electrical safety and proper supervision.

Building these habits will save you money on replacement parts and, more importantly, keep you safe as you explore this amazing hobby.

🏁 Conclusion

green and orange electric wires

Congratulations, future microcontroller maestro! You’ve just navigated the fascinating universe of microcontroller projects for beginners, from blinking LEDs to building your own smart devices. Along the way, we’ve demystified the history, helped you pick the right board, equipped you with essential tools, and handed you a treasure trove of project ideas to spark your creativity.

Whether you choose the Arduino UNO for its legendary ease, the Raspberry Pi Pico for its power and flexibility, or the ESP32 for its connectivity prowess, each platform offers a unique gateway into the world of embedded systems. Remember, the best microcontroller is the one that fits your project goals and learning style.

We also tackled the art of debugging, the magic of sensors and shields, and even the leap from breadboards to professional PCBs. Plus, we invited you to join the vibrant Maker Movement, where your ideas can grow and inspire others.

If you ever wondered, “Can I really do this?” — the answer is a resounding YES! Every expert was once a beginner who dared to try. So grab your board, fire up your IDE, and start creating. The only limit is your imagination.

Happy coding and building! 🚀

Ready to gear up? Here are some top picks and resources to get you started:

❓ FAQ

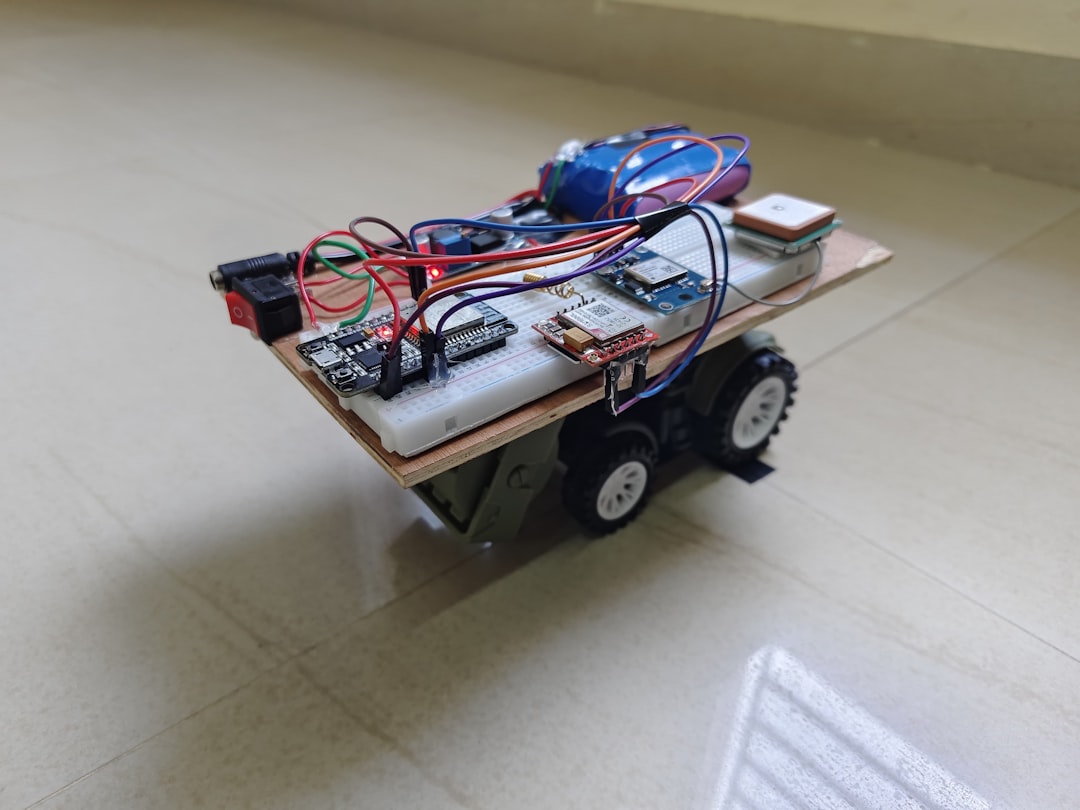

A custom-built robot sits on a light-colored floor.

What are some simple microcontroller projects for beginners to start with?

Some of the easiest projects to get your feet wet include blinking an LED, reading a push-button input, controlling an RGB LED with a potentiometer, and measuring temperature with a DHT11 sensor. These projects teach fundamental concepts like digital and analog I/O, timing, and sensor interfacing. Starting small helps build confidence before moving on to more complex builds like motor control or wireless communication.

Read more about “Is Arduino Beginner Friendly? 7 Reasons to Start Coding in 2025! 🚀”

How do I choose the right microcontroller for my beginner project?

Choosing the right microcontroller depends on your project goals and experience level:

  • Arduino UNO: Best for absolute beginners due to its simplicity and massive community support.
  • Raspberry Pi Pico: Great if you want more processing power and want to learn MicroPython or C/C++.
  • ESP32: Ideal if your project needs Wi-Fi or Bluetooth connectivity.

Consider factors like voltage levels, available pins, programming language support, and ecosystem. Also, think about your long-term goals—do you want to build IoT devices, robots, or simple gadgets?

Read more about “What Is an Arduino Used For? 15 Amazing Projects to Inspire You (2025) 🚀”

What programming languages are used for microcontroller projects for beginners?

The most common languages are:

  • C/C++: The industry standard for microcontrollers, used in Arduino IDE and many professional environments.
  • MicroPython: A beginner-friendly, lightweight version of Python designed for microcontrollers, supported by boards like Raspberry Pi Pico and ESP32.
  • Arduino Language: A simplified version of C++ with a user-friendly API.

Starting with Arduino IDE and its simplified language is recommended, then you can explore MicroPython or native C/C++ as you advance.

Read more about “Can Raspberry Pi Pico Power Advanced AI Robots? 10 Must-Know Facts (2025) 🤖”

What are the basic components needed to start building microcontroller projects?

At minimum, you’ll need:

  • A microcontroller board (Arduino UNO, Raspberry Pi Pico, or ESP32)
  • USB cable for programming and power
  • Breadboard and jumper wires for prototyping
  • Basic components like LEDs, resistors, push buttons, and sensors (e.g., temperature sensor)
  • A computer with the appropriate IDE installed (Arduino IDE, Thonny for MicroPython, etc.)

A starter kit bundles these essentials and is highly recommended for beginners.

Read more about “What Is Arduino Used For & Why? 15 Surprising Uses in 2025 🚦”

Can I use Arduino for microcontroller projects as a beginner?

✅ Absolutely! Arduino is the most beginner-friendly platform out there. Its simple IDE, vast library ecosystem, and huge community make it easy to find tutorials and troubleshoot issues. It’s the perfect starting point for learning embedded programming and electronics.

Read more about “7 Best Arduino Boards for Beginners to Start Robotic Coding (2025) 🤖”

Some top kits include:

  • Elegoo UNO R3 Super Starter Kit: Great for Arduino beginners with many sensors and components.
  • SunFounder Raspberry Pi Pico Starter Kit: Perfect for learning MicroPython and C/C++ on the Pico.
  • Freenove Ultimate Starter Kit for ESP32: Ideal for those wanting to explore IoT and wireless projects.

These kits come with tutorials and project guides, making them excellent learning tools.

Read more about “Why Raspberry Pi Pico Beats Arduino: 8 Reasons to Choose It in 2025 🚀”

How do I learn to code and program a microcontroller for my first project?

Start by installing the official IDE for your board (Arduino IDE for Arduino and ESP32, Thonny or VS Code for Raspberry Pi Pico). Then:

  • Follow beginner tutorials that guide you through writing and uploading your first sketch (program).
  • Experiment with simple projects like blinking an LED.
  • Use the Serial Monitor to debug and understand your code’s behavior.
  • Join online communities and forums to ask questions and share progress.
  • Gradually increase project complexity as you gain confidence.

Practice and patience are key! Remember, every expert was once a beginner.

Read more about “Is Arduino Similar to Raspberry Pi? 12 Key Differences Explained (2025) 🤖”

Dive in, explore, and build something amazing!

Leave a Reply

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Trending now

[2023] 15 Exciting Robotics Courses for High School Students
Best Programming Language for Robotics in 2024
What Coding Language Is Used in Robotics in [2023]?
Featured image for Mastering Robotics Programming for Beginners 12 Essential Steps 2025
Mastering Robotics Programming for Beginners: 12 Essential Steps (2025) 🤖
